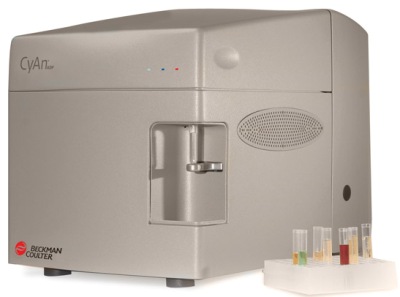

CyAn ADP uses multiple laser excitation sources to analyze biological cells, beads or other microscopic particles.
With two models to accommodate adiverse range of applications, with up to 11 standard parameters and 9colors, the CyAn ADP analyzer is the next step in Advanced Digital Processing with true high speed analysis capability.
CyAn ADP integrated to the HyperCyt plate loader enables high throughput screening of 384-well plates in less than 10 minutes. With front end automation of the HyperCyt and the sensitive optics and analysis speed of the CyAn ADP, compound screening and HTS assays are performed quickly and accurately.
CyAn ADP uses multiple laser excitation sources to analyze biological cells, beads or other microscopic particles. The CyAn ADP has state-of-the-art optics,utilizes high performance digitization with pulse processing speed up to 70,000 events per second complementing a high acquisition and analysis capability of up to 100,000,000 event data files.
- Enhanced detection for flow cytometry
- State-of-the-art optics and electronics
- Automated compensation
- Easy to walk-up operation
It offers two models to accommodate a diverse range of applications, with up to 11 standard parameters and 9 colors.
CyAn ADP 7 Color has 9 parameters (FSC, SCC, FL1-FL7) and is equipped with 488 nm and 642 nm solid-state lasers. Some key research applications include CD34 enumeration, signal transduction, antigen-specific T-cell detection and multicolor immunophenotyping.
CyAn ADP 9 Color adds the 405nm solid state laser and two fluorescent channels. Up to 9x9 parameter compensation can be performed manually, using bi-exponential transformation (VisiComp)or automatically. Additional research applications include stemcell/SPanalysis, DAPI Cell Cycle analysis and CFP-YFP FRET analysis.
