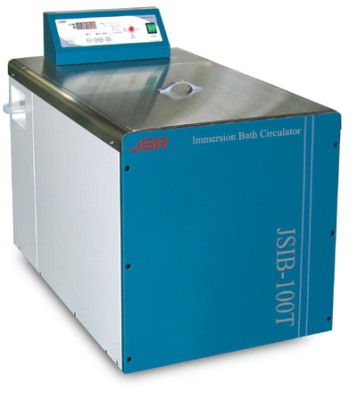

Large capacity circulating wath Water control temperature range from ambient +5°c to 99.9°c, with large volume of internal and external circulation pump. Internal circulation pump enables precise temperature uniformity in the bath within ± 0.3°c comparing to conventional heated water bath without circulation system.
External circulation pump enables to circulates water (liquid) to external equipments which needs to be kept constant temperature. External circulation flow rate is 7 ~ 20 liters/minute and pressure is 450 mbar.
Circulation Capability
-
Stainless steel 304 bath is corrosion resistant and maintenance free
-
Magnetic driven pump is ABS material which is corrosion resistant from life time repeated usage
-
Pump assembly circulates water up to 7 or 20 Liters / min. at pressure up to 450 mbar pressure
Precision Temperature
-
Immersed incoloy heater with water circulation by magnetic driven pump provide high precision temperature and uniformity
-
Up to Max. 99°c, ± 0.1°c accuracy, ± 0.3°c uniformity
-
Microprocessor PID Controller with 0.1℃ resolution
-
Over temperature Protection, Alarm, Timer, Auto tuning, in-built temperature calibration function
