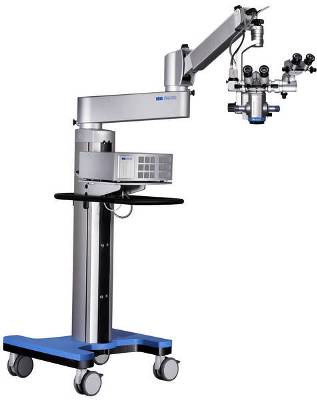

MÖLLER ALLEGRA 90 Ophthalmic Surgery Microscope

Exellent optics and high modularity are combined in MÖLLER ALLEGRA 90. Its manual magnification changer and mechanical brakes make it the ideal microscope for small operating units and hospitals.

Features:

  • 25 mm stereo base for enhanced 3D vision
  • Apochromatic optics
  • Red reflex enhancer
  • 5-step magnification changer
  • Inclination of -8° to +100°
  • Fix eyepiece head inclined by 60°
  • 200 mm front lens
  • Optional: integrated camera module
  • Optional: EIBOS and TOCULAR

Precise movements:

For horizontal movements an  X-Y coupling can optionally be mounted to the microscope. This has a range of 60 mm x 60 mm and is controlled via foot switch.

Light management:

By means of a sterilizable knob, the following diaphragm and filters can be selected:

  • Overall illumination of the visual field
  • Mini spot and spot
  • Daylight filter
  • Blue filter
  • Green filter
  • Softlight filter
  • Yellow UV filter

Coobservation and documentation:

Via a beam splitter, MÖLLER ALLEGRA 90 can be equipped with adapters for video, still, and digital cameras, as well as with a stereoscopic observer scope. Furthermore, a 1 CCD video camera can be integrated to reduce the microscope's length.
