Ultra-Low Freezers, often known as ULTs, are freezers that can keep things at –86 °C. They are mostly used in research labs, hospitals, and laboratories to preserve genetic material and other substances that are extremely thermosensitive for extended periods of time.
Due to the high volatility of their samples, chemicals, and finished products, biomedical research institutions frequently utilize them. Moreover, as certain mRNA-based vaccinations need to be stored at a long-term temperature of –70 °C, Ultra-Low Freezers have recently become more widely used owing to the COVID-19 pandemic.

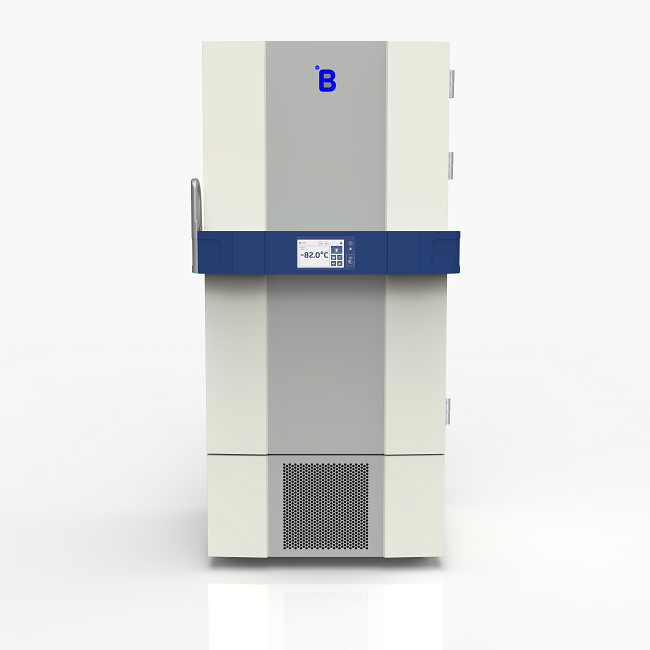

A variety of Ultra-Low Freezers with diverse storage capacities are available from B Medical Systems. With a gross volume of 791 L, its most popular model, the U701, is perfect for hospitals, labs, universities, and research organizations that need a large storage area for their most thermosensitive samples and products.
The versatility of the operating temperature range is the main benefit of this Ultra-Low Freezer, as it can safely store a variety of goods at temperatures between –86 °C and –20 °C. This feature essentially enables this model to function as a regular medical freezer if necessary.
Source: B Medical Systems S.à r.l
. |
. |
Net Volume |
751 L | 26.52 cu ft |
Cryoboxes Capacity |
575 |
2ml Vials Storage Capacity |
57500 |
Set Temperature Range |
-86 °C to -20 °C |
Ambient Temperature Range |
+10 °C to +43 °C |
Certifications |
EU MDR Class IIa | ISO 14644-1 | Class 5 | US FDA Class II | Energy Star |
Net Weight |
297 Kg | 654.77 lb |
Energy Consumption |
11.9 kWh/24 hours (230 V, 50 Hz)
13.5 kWh/24 hours (220 V, 60 Hz) |
Refrigerant Type |
Natural R290/R170 |
Remote Monitoring |
°B Connected software/ RTMD |
Hold Over Time |
1.5 hours (-82 °C to -60 °C) (220 V 60 Hz) at 25 °C
1.3 hours (-82 °C to -60 °C) (230 V 50 Hz) at 25 °C |
