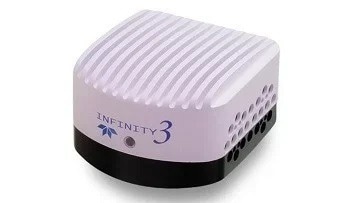

The INFINITY3-1 camera from Lumenera is intended for a range of different scientific applications. Cooled models are perfect in low-light conditions and where a high dynamic range is a must.
With on-board processing and a resolution of 1392 × 1040, these cameras offer excellent image quality and value for industrial and scientific imaging applications. A USB 2.0 digital interface is used to transmit uncompressed images for still image capturing and live streaming video.
A hardware- and software-based synchronization trigger is also available as an option. To aid with frame buffering, on-board memory is available. The INFINITY3-1 is available in color, as well as OEM form factors, including board-level and custom enclosures.
The INFINITY3-1 comes with INFINITY ANALYZE software for advanced camera control, measuring and annotation, image processing, and INFINITY CAPTURE - an intuitive user interface that includes all of the basic features needed to control an INFINITY camera and capture images. Color product models are also available.
An experienced team of application engineers and software developers are on hand to offer support for all Lumenera products. Teledyne Lumenera is available to assist users with the integration and development as they are aware of their imaging demands.
Product highlights
- 480 Mbit/second high-speed USB 2.0 interface for simple PC installation
- Cooled feature reduces thermal noise during low-light fluorescent imaging
- Low noise progressive scan 1.4-megapixel CCD image sensor
- Crystal-clear color for the most demanding brightfield, phase contrast, and fluorescent applications, such as GFP, FISH, NIR, FRET, life science, and geology
- 15 fps at full 1392 × 1040 resolution
Included in the box
- 2 m USB 2.0 cable
- INFINITY3-1C – 1.4 Megapixel Color Cooled CCD Camera
Ordering options
- LuSDKSW — Software Developer’s Kit (Web Download)
- 5YR Protection Plan 2 – 5-Year Extended Warranty with Advanced Replacement
Technical specifications
Camera Settings. Source: Teledyne Lumenera
| . |
. |
| Image Sensor |
CCD, Sony ICX285, Progressive Scan, Avail in Color |
| Effective Pixels |
1392 X 1040, 1.4 million pixels |
| Optical Format |
2/3” |
| Frame Rate |
15 |
| Digital Output |
8 and 12-bit |
| Full Well Capacity |
>18,000 electrons |
| Cooling Type |
Hermetically sealed and dry gas filled thermoelectric
cooling to 25 degrees Celsius below ambient |
| Read Noise |
8 e- rms |
| Dark Current |
0.15 electrons / pixel / s when cooled |
| Pixel Size |
6.45 X 6.45 µm |
| Readout Frequency |
28.6 MHZ |
Camera Controls. Source: Teledyne Lumenera
| . |
. |
| Power Requirement |
External 5 V DC - 3 amp |
| Power Consumption |
~2.5 W uncooled / ~8.5 W cooled |
| Operating Temperature |
0 to +50 °C |
| Operating Humidity |
5 to 95%, Non-condensing |
| Integration Time |
3.5 μs to 20 minutes |
| Auto Exposure |
Automatic / Manual |
| White Balance |
Automatic / Manual |
| Gain |
1 to 10X programmable |
| Interface Connector |
USB 2.0 |
| Dimensions |
3.85 x 3.5 x 2.446 inch |
| Lens Mount |
C-Mount lens adapter |
| Binning Options |
2x2, 3x3, 4x4 |
