R3600 controller series is based on the C3000 series measurement system and has as such the same functionality. This controller adds 2 independent programmable control systems. All inputs, including temperature, can be used as input for the control system. After an unexpected mains interrupt, the controller will automatically continue with it's task.

The system has 4 programmable solid state relays and two 4-20 mA analog outputs. Various control modes and safety features are provided.

Via a galvanic isolated RS485 interface it's possible to conned up to 31 controllers with a computer. Both software and communication protocol can be downloaded for free from our website.

A programmable alarm function prevents overdosing of chemicals in the process liquid. Each time a pre-set level is exceeded the corresponding relay is closed and an alarm timer starts to count down. When the level is still exceeded after the count down, all relays will be opened and an alarm is given.

R3614 and R3624 are versions with 1 extra DIN connector for 4-pole conductivity electrodes.

Highlights

Multichannel up to 2 measurements can be performed at the same time and simultaneous or individually displayed on the screen. Measurement speed is 2 Hz.

No Interference between pH/ORP/lon and conductivity electrodes in the same solution

Custom Calibration Tables allows the user to add complete buffer/standard-temperature relation tables. With this feature the built-in tables can be extended with your own tables. Tables can be entered via a device menu or uploaded from a PC.

LCD Display shows 2 channels at the same time including temperature and date/time.

Stability Indicator algorithm ensures stable reading and visualization of when measurement stabilized.

Selectable Resolution for more stable readings for mV, pH and DO.

Capacitive Compensation eliminates the capacitive component of the electrode and cable at low conductivity measurements

Galvanic Isolated RS485 Interface eliminates ground loop effects when connected to a PC.

Galvanic Isolated 4..20 mA Analog Output.

Control Types: proportional, on/off

Safety Features:

  • Stop the control (relays off) without stopping the measurements
  • Automatic resume
  • Washing program
  • Programmable alarm

Pre-Programmed Standards

pH: 1.68, 2.00, 4.00, 4.01, 6.87, 6.99, 9.18, 9.21, 10.01, 12.00, 12.45 (at 25 °C)
Conductivity: 1413 pS/cm, 12.88 mS/cm, 111.8 mS/cm (at 25 °C)

Free Software downloadable from www.consort.be

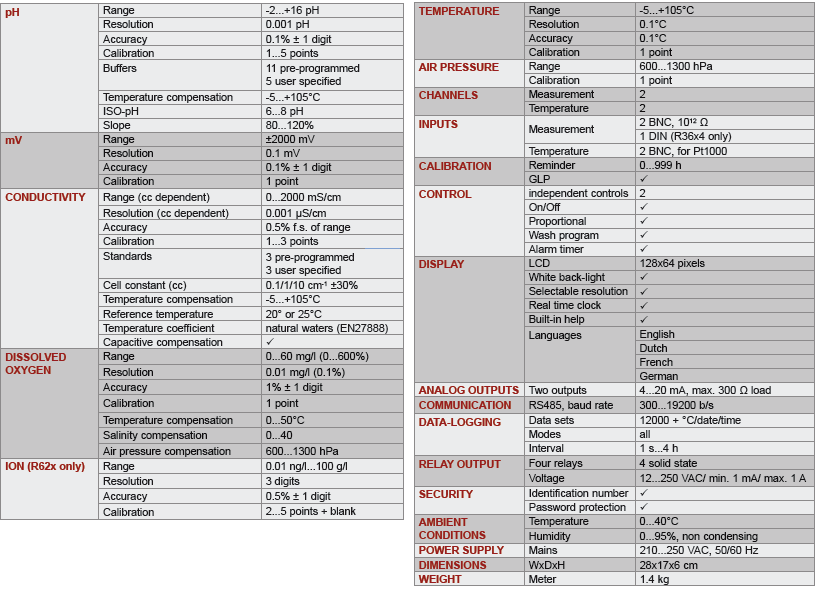

Specifications
