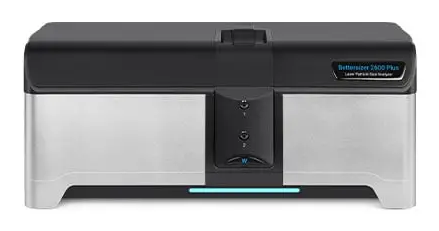

The Bettersizer 2600 Plus integrates laser diffraction with dual-camera dynamic imaging within a single modular platform, enabling the characterization of size and shape across a range of 0.02–3500 μm.
Laser diffraction facilitates rapid and consistent particle size distributions through a 92-detector array and Mie/Fraunhofer models.
Dynamic imaging captures high-speed images of particles to assess size and shape, providing visual confirmation for agglomerates, irregular particles, and oversized tails.
The Bettersizer 2600 Plus accommodates a wide variety of wet and dry dispersion units, thanks to its modular design.
This flexibility allows for various configurations to be tailored to different sample types, solvents, and volumes, ensuring that a single instrument can cater to a multitude of applications and industries.
Features and benefits
- Unified size and shape on a single platform: Combining dynamic imagery with laser diffraction
- Broad range: 0.02–3500 μm, appropriate for a range of materials and processes
- Modular dispersion units: Flexible wet and dry setups for a range of solvents and samples
Overview
Advanced technology

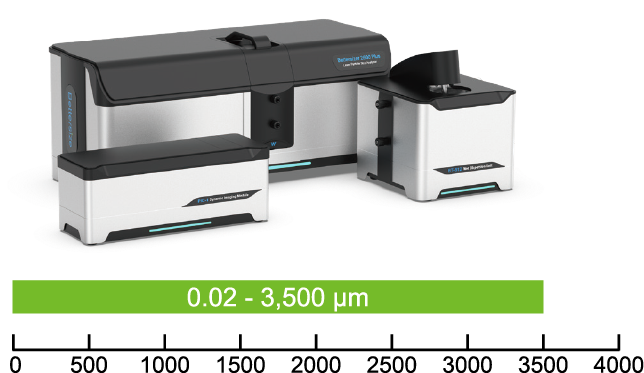

Bettersizer 2600 Plus - Particle size and shape analysis for all needs
Image Credit: Bettersize Instruments

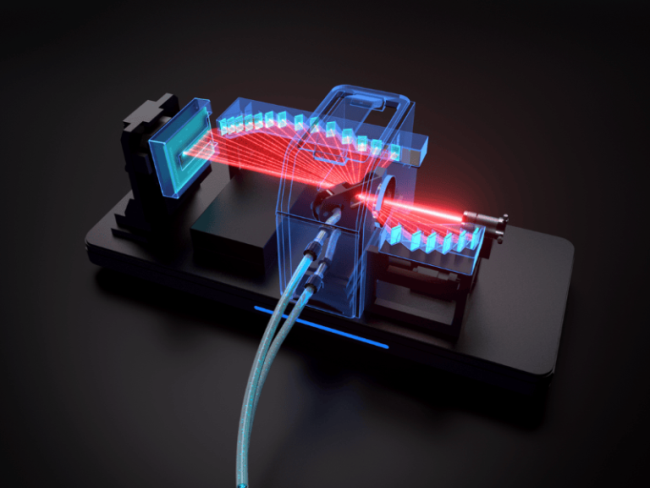

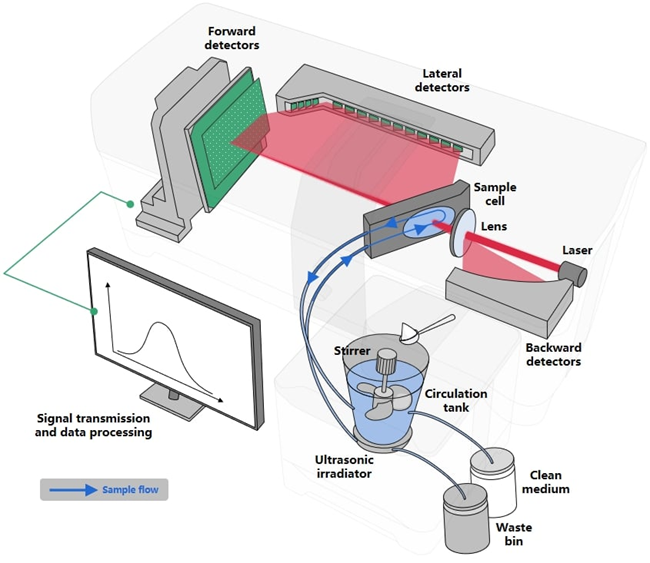

Advanced laser diffraction system
Image Credit: Bettersize Instruments
Wide-angle signal collection for reliable PS
The Bettersizer 2600 Plus is engineered to deliver consistent and reliable particle size distributions across a vast measurement range by efficiently capturing extensive scattering signals.
The system's patented Fourier and inverse-Fourier optical system improves measurement accuracy and signal collection.
- An array of 92 detectors intended for superior scattering detection
- Both fine and coarse particles have an angular coverage of 0.016 ° to 165 °
- A tilted sample cell design improves signal usage and reduces total internal reflection.
Confidence for optically challenging samples
Mie-based sizing may be sensitive to unknown or variable optical characteristics in many real-world samples.
With its innovative refractive index measurement feature, the Bettersizer 2600 Plus improves measurement accuracy under difficult optical circumstances.
- Increase the dependability of results for optically complex samples
- Handle unknown materials with greater confidence
- Verify optical information at the operational wavelength
Superior performance
The laser diffraction system ensures reliable and accurate particle size measurements in compliance with ISO 13320, enabling improved performance levels across a range of industries and applications.
- Finalize measurements in as few as 10 seconds
- Attain precision exceeding 0.5 %
- Span a broad measurement spectrum from 0.02–2600 μm
- Provide consistency superior to 0.5 %
Dual-camera dynamic imaging system

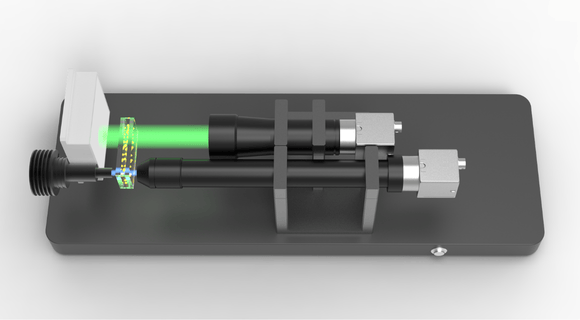

Modular dual-camera imaging system
PIC-1 is a dynamic imaging module with two cameras that can analyze particle images in real time. It facilitates both independent imaging and integrated analysis with laser diffraction by taking high-speed pictures of particles during measurements and converting them into size and shape data.
Image Credit: Bettersize Instruments
Size range: 2–3500 μm
Magnification: 0.5×, 10×
Modes: Imaging-only/Combined
Frame rate: 70 fps
Broadened insight with modular imaging expertise
Combined size and shape characterization
Image Credit: Bettersize Instruments

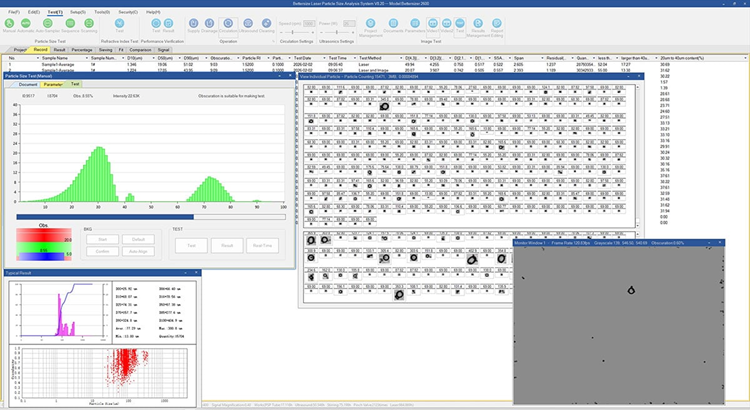

When using PIC-1, laser diffraction and dynamic imaging operate within a singular wet-dispersion workflow, providing insights into both particle size and shape in a single measurement. This integrated configuration enhances the platform's capability to accommodate sizes up to 3500 μm.

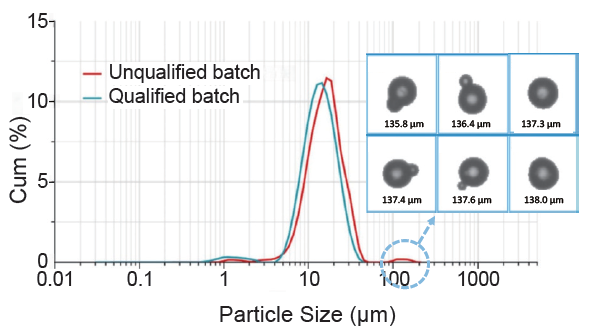

Detection of abnormal particle
Image Credit: Bettersize Instruments
Imaging evidence increases trust in quality control and troubleshooting by helping to identify unusual occurrences, including large particles, agglomerates, and bubbles.

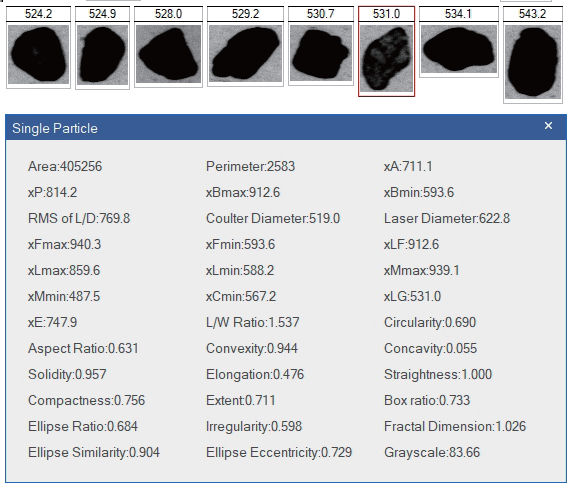

Irregular particle characterization
Image Credit: Bettersize Instruments

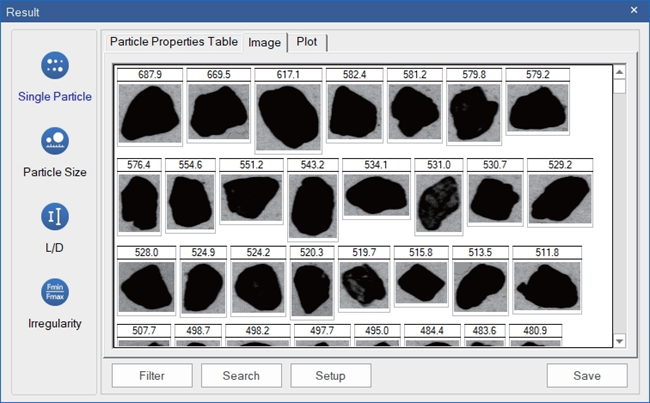

In order to enable thorough single-particle analysis, PIC-1 takes real-time particle photos, enabling a deeper comprehension of particle shapes and their properties by offering information on up to 32 size and shape attributes.

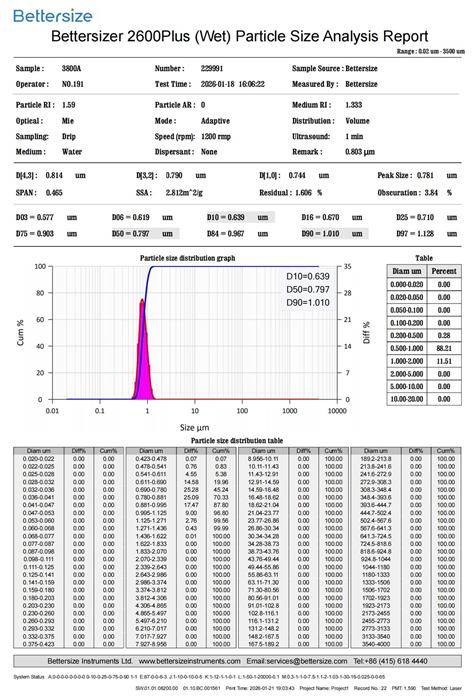

Traceability and result review
Image Credit: Bettersize Instruments
Particle images offer a verifiable foundation for assessment and validation, aiding quality control, research and development, and applications requiring high reliability.
Specification
Source: Bettersize Instruments
| General |
| Principle |
Laser diffraction technology, Dynamic image analysis |
| Analysis |
Mie scattering theory, Fraunhofer diffraction theory, Dynamic image analysis |
| Data acquisition rate |
11 kHz |
| Typical measurement time |
Less than 10 seconds |
| Special functions |
Automatic surfactant addition, refractive index measurement, sample ratio calculation |
| Measurement performance |
| Measuring range* |
0.02–2600 μm (wet); 0.1–2600 μm (dry); 2–3500 μm (dynamic image) |
| Accuracy* |
≤ 0.5 % |
| Repeatability* |
≤ 0.5 % |
| Number of size classes |
100 (adjustable) |
| Main device |
| Optical system |
Laser diffraction system |
| Laser |
10 mW, 635 nm |
| Delector |
92 detectors |
| Measuring angle |
0.016–165 ° |
| Alignment |
Automatic |
| Dynamic imaging module |
| Optical system |
Dynamic imaging system |
| CMOS camera |
0.5x and 10x |
| Measuring range |
2–3500 μm |
| Frame rate |
70 fps at 5 MP |
| Compliance |
| Laser |
Class 1 (IEC60825-1 and 21CFR1040.10) |
| Regulatory |
RoHS, CE |
| Standards |
ISO 13320, ISO 13322-2, USP <429> |
| Software |
21 CFR Part 11 |
| System |
| Supply voltage |
100-240 VAC, 50/60 Hz |
| Dimensions (L × W × H) |
745 × 305 × 305 mm |
| Weight |
33 kg |
| Computer configuration (recommended) |
| Computer interface |
At least two high-speed USB 2.0 and two USB 3.0 ports required |
| Operating system |
Windows 10 or higher |
| Hardware specification (recommended) |
Intel Core i5 Processor, 16 GB RAM, 512 GB SSD, 1920 × 1080 (Full HD) |
*Sample and sample preparation dependent

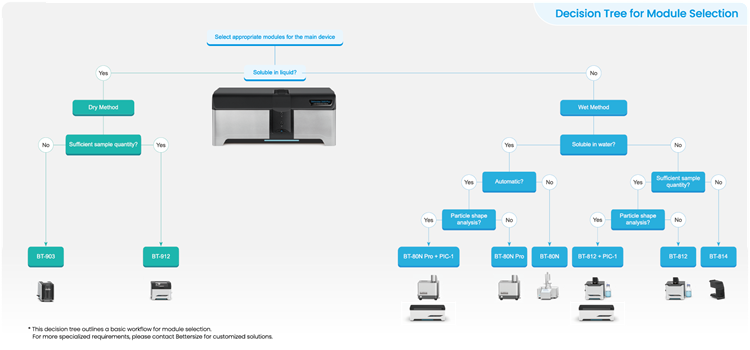

Dispersion units
Bettersizer 2600 Plus family
Wet dispersion units
Consistent dispersion workflow for reliable results
Image Credit: Bettersize Instruments
In order to establish a stable suspension, wet dispersion introduces the sample to a selected liquid medium, such as water or an appropriate organic solvent. Dispersion conditions are maintained by a controlled process, which is often defined by automated Standard Operating Procedures (SOPs).
While integrated ultrasonic treatment breaks down agglomerates and helps release trapped air, continuous circulation and stirring encourage homogeneity. After passing through the optical measuring zone, the suspension is recirculated for reliable examination. The addition of automated surfactant improves wetting and suspension stability even more, reducing re-agglomeration and enabling consistent, operator-independent outcomes.
Core functions across wet dispersion units
Surfactant addition: Enhance wetting and maintain suspension stability
Ultrasonic energy: Disperse particles and aid in the elimination of trapped air
Stirring and circulation: Guarantee consistency and reduce settling

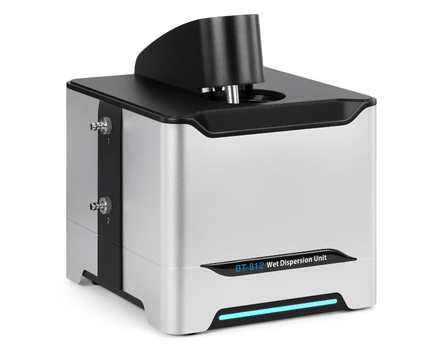

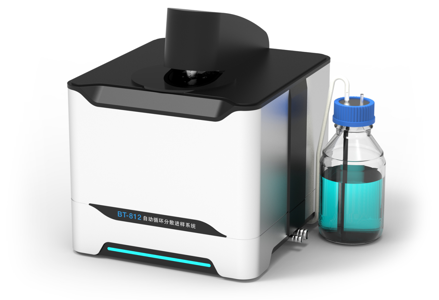

BT-812 automatic wet dispersion unit
Image Credit: Bettersize Instruments
Water-based wet dispersion is the most commonly used procedure, as most regular samples can be dispersed in water. In such situations, the Bettersizer 2600 Plus's primary wet dispersion unit is the BT-812, which combines automated liquid handling, ultrasonics, and controlled circulation to deliver reliable data.
- Fully automated liquid handling system that includes level monitoring and automatic addition of dispersants
- High-capacity circulation tank with a maximum volume of 500 mL
- Centrifugal circulation pump with adjustable speed
- Comprehensive software control for dispersion, measurement, and cleaning processes
- 50 W ultrasonic dispersion system with dry-run protection and adjustable settings
Source: Bettersize Instruments
| Parameter |
Specification |
| Measurement range* |
0.02–2600 μm |
| Stirring speed |
300–2500 rpm |
| Ultrasonic power |
50 W maximum |
| Volume |
500 mL maximum |
| Medium |
Water |
| SOP |
Yes |
| Dimensions (L × W × H) |
257 × 275 × 308 mm (L × W × H) |
| Weight |
11.5 kg |
| Component |
ABS housing
304 stainless steel tank
Silicone tubing
Centrifugal pump
Peristaltic pump
Ultrasonic disperser
Quartz sample cell
Pinch valve |
* Sample and sample preparation dependent
Automatic surfactant addition
- Volume-regulated addition for uniform preparation
- SOP settings for consistent workflows
- Automated surfactant dosing during dispersion
Image Credit: Bettersize Instruments

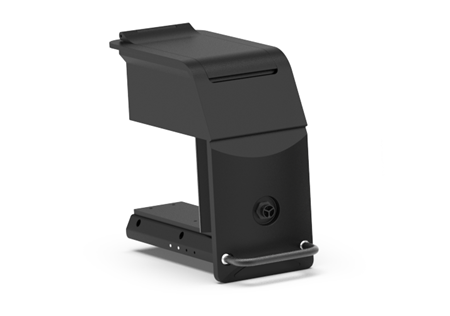

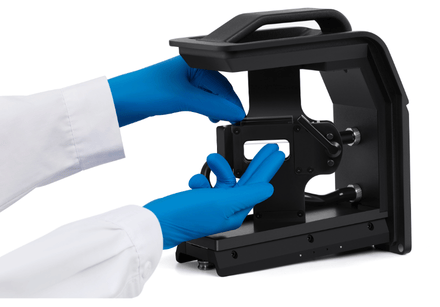

Easy-to-remove wet sample cell
- Tool-free removal for daily ease
- Toggle-lock system designed for rapid installation and removal
Image Credit: Bettersize Instruments

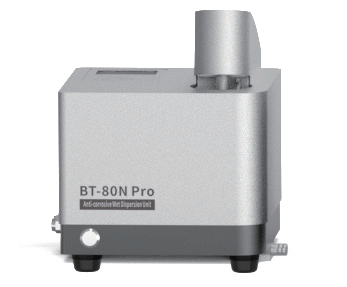

BT-80N Pro automatic anti-corrosive wet dispersion unit
Image Credit: Bettersize Instruments
The BT-80N Pro is designed especially for wet dispersion procedures that require caustic materials or organic solvents to be used. Essential parts are built from materials that are resistant to corrosion to meet these requirements, improving long-term compatibility and dependability.
- Comprehensive software control for dispersion, measurement, and cleaning processes
- Centrifugal circulation pump featuring adjustable speed
- Low-volume circulation tank: 80–120 mL
- Broad compatibility with organic solvents
- Two operational modes: local panel control or software control
- 50 W ultrasonic dispersion that is adjustable and includes dry-run protection
Source: Bettersize Instruments
| Parameter |
Specification |
| Measurement range* |
0.02–2600 μm |
| Stirring speed |
300–2500 rpm |
| Ultrasonic power |
50 W maximum |
| Volume |
80–200 mL |
| Medium** |
Water, organic solvent |
| SOP |
Yes |
| Dimensions (L × W × H) |
240 × 220 × 290 mm (L × W × H) |
| Weight |
9 kg |
| Key Component |
316L Stainless-steel housing
PTFE tubing
316 Stainless-steel diaphragm pump
316L Stainless-steel tank
Quartz sample cell
Ultrasonic disperser |
* Sample and sample preparation dependent
** Compatibility depends on the wetted materials.

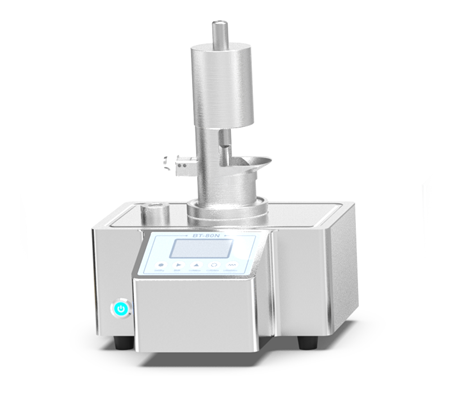

BT-80N anti-corrosive wet dispersion unit
Image Credit: Bettersize Instruments
The BT-80N functions as a cost-effective, entry-level choice that provides basic solvent compatibility for typical measurements.
- Wide compatibility with organic solvents
- Centrifugal circulation pump featuring adjustable flow
- 50 W adjustable ultrasonic dispersion equipped with dry-run protection
- Compact circulation tank: 50–80 mL
- Operational modes controlled via a local panel
Source: Bettersize Instruments
| Parameter |
Specification |
| Measurement range |
0.02–2600 μm |
| Stirring speed |
300–3000 rpm |
| Ultrasonic power |
50 W maximum |
| Volume |
50–80 mL |
| Medium |
Water, organic solvent |
| SOP |
No |
| Dimensions (L × W × H) |
290 × 210 × 375 mm (L × W × H) |
| Weight |
11 kg |
| Key Component |
316L Stainless-steel housing
PTFE tubing
316L Stainless-steel tank
Quartz sample cell
Ultrasonic disperser |
BT-814 small-volume wet dispersion unit
Image Credit: Bettersize Instruments
The BT-814 has been meticulously designed for situations where sample availability is limited or the material is of high value. It supports dispersion in organic or water-based solvents, thus providing maximum versatility for a wide range of applications.
- Compatibility with a wide range of dispersion media
- Sample cell with a small volume: 8 mL
- Stirring is controlled to maintain stable dispersion conditions
Source: Bettersize Instruments
| Parameter |
Specification |
| Measurement range* |
0.02–2600 μm |
| Volume |
8 mL |
| Medium |
Organic solvent or water |
| SOP |
No |
| Dimensions |
/ |
| Weight |
/ |
| Key component |
ABS housing
Quartz sample cell
316L Stainless-steel stirrer |
* Sample and sample preparation dependent

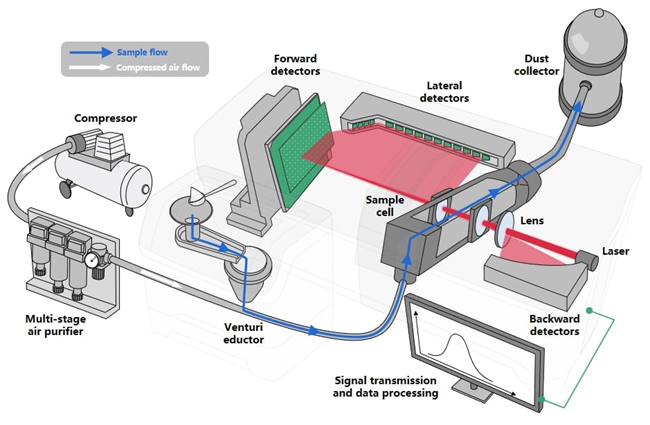

Dry dispersion units
Controlled deagglomeration for repeatable results
Image Credit: Bettersize Instruments
Dry dispersion involves the introduction of powder samples into the system using gases as the medium. The sample is transported to the disperser via controlled vibrations.
Within the disperser, particles are propelled by a meticulously regulated high-pressure gas stream that passes through a Venturi device. Shear forces, collisions between particles, and impacts with the walls contribute to the disintegration of agglomerates prior to measurement.
The stream of dispersed particles moves through the laser diffraction measurement area for analysis, and is efficiently evacuated and collected by a vacuum unit.
Shear forces: High-velocity airflow effectively separates loosely bound agglomerates during the processes of acceleration and transport.
Inter-particle collisions: Controlled flow collisions facilitate deagglomeration and enhance dispersion stability.
Particle-wall impacts: Impacts occurring within the inlet pathway improve the breakup of agglomerates prior to measurement.

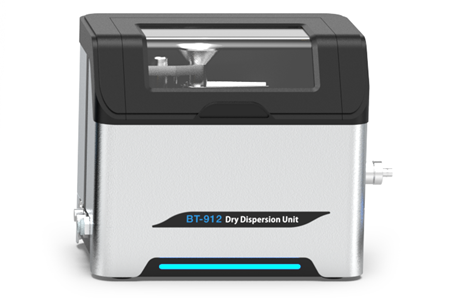

BT-912 automatic dry dispersion unit
Image Credit: Bettersize Instruments
For standard powder dispersion using compressed gas, the BT-912 is the primary dry dispersion machine. It can handle a wide variety of powders, including cohesive and friable kinds.
Representative sampling: 0.2–10 g for standard laboratory analysis and quality control
Flexible gas supply options: Suitable dispersion for various dry powders
Controlled feeding: The position of the adjustable hopper and the frequency of the vibration should be modified to ensure the stabilization of obscuration.
Fully automated sample feeding and cleaning: Enhances efficiency and uniformity
Source: Bettersize Instruments
| Parameter |
Specification |
| Measurement range* |
0.1–2600 μm |
| Powder mass |
0.2–10 g |
| Gas pressure |
0.1–0.8 MPa |
| Funnel height |
0.7–2.9 mm |
| Medium |
Air, nitrogen, or noble gases |
| SOP |
Yes |
| Dimensions |
276 × 189 × 243 mm |
| Weight |
8 kg |
| Key Component |
304 Stainless-steel funnel
304 stainless-steel feeder
Venturi disperser
Vacuum cleaner (optional)
Air Compressor (optional) |
* Sample and sample preparation dependent

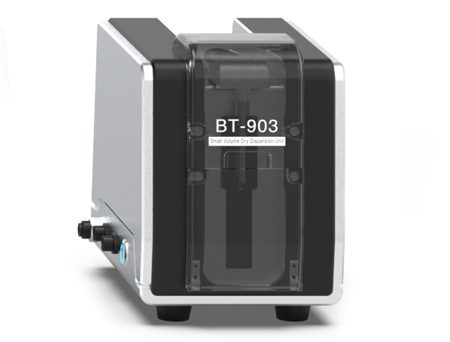

BT-903 small-volume dry dispersion unit
Image Credit: Bettersize Instruments
In cases where the sample quantity is limited, the BT-903 is a suitable small dry dispersion device designed for powder measurements. Stable and reliable sampling is made possible by loading samples into a tube and then introducing them into the disperser via controlled gas flow and negative-pressure suction.
Negative-pressure sampling: Consistent small-scale feeding with a sample dosage ranging from 0.02–1 gram
Quick tube replacement: Minimizes carryover
Removable glass tube: Simplified maintenance and comprehensive sanitation
Fully automated feeding and cleaning: Enhances efficiency and uniformity
Flexible gas supply options: Suitable dispersion for various dry powders
Source: Bettersize Instruments
| Parameter |
Specification |
| Measurement range* |
0.1–2600 μm |
| Powder mass |
0.02–1 g |
| Tube volume |
5 mL maximum |
| Gas pressure |
0.1–0.8 MPa |
| Medium |
Air, nitrogen, or noble gases |
| SOP |
Yes |
| Dimensions |
195 × 260 × 245 mm |
| Weight |
5 kg |
| Key Component |
Plastic sample tube
316 Stainless-steel tubing
Silicon tubing
Venturi disperser
Vacuum cleaner (optional)
Air Compressor (optional) |
* Sample and sample preparation dependent
Easy module selection
The Bettersizer 2600 Plus features a dynamic imaging module that enhances the measurement range and performs particle shape analysis: it also contains wet and dry dispersion units for effective particle dispersion.
The decision tree for module selection helps users choose the suitable dispersion unit and evaluate their needs for the dynamic imaging module.
Image Credit: Bettersize Instruments
Software
The entire particle size measurement process, encompassing sample preparation, measurement control, data analysis, and report generation, is enhanced by Bettersizer Software. Seamlessly integrated with the Bettersizer 2600 Plus, it automates standard procedures through a significant degree of automation, reducing the need for manual input while increasing productivity and ensuring consistent output.
- Real-time laser diffraction view: Continuously updates the particle size distribution during the run while monitoring obscuration and signal status
- Dynamic imaging window: Facilitates image-based testing to enhance size data with information regarding the particle shape
- Individual particle view: Provides an analysis of collected particles at the image level
- Imaging size results: Displays particle size distributions derived from images for comprehensive coverage and validation
- Shape scatter plots: Assists in identifying trends in particle distribution and shape by visualizing the connections between size and shape
- Test record table: Organizes run history and key parameters for the purposes of reporting, comparison, and traceability
Image Credit: Bettersize Instruments
Smart dispersion control
The 'Auto Dispersion Setting' employs real-time repeatability to automatically determine the optimal dispersion duration. It selects either the best repeatability interval at the maximum duration or ceases operation once the user-defined repeatability goal is achieved.
SOP-based automation
Along with basic stirring, cirulation, and ultrasonics, Standard Operating Procedures (SOPs) standardize the entire process. To enhance consistency among operators and laboratories, automated tasks may encompass report generation and printing, automatic addition of dispersants, and autodilution to ensure the target obscuration is maintained.
Flexible measurement modes
Characterization of particle size and shape can be accomplished within a unified workflow, enabling users to choose from laser diffraction, dynamic imaging, or a combination of LD and imaging modes, depending on the properties of the sample and the requirements for reporting.

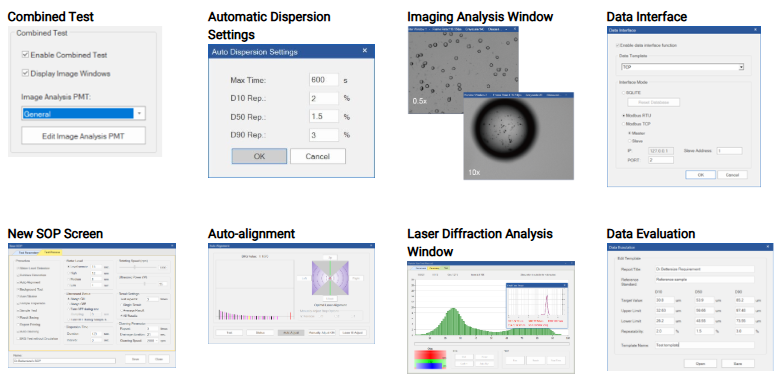

Software features across the testing workflow
Automatic pre-processing
Users can easily create new tests that use dynamic image analysis techniques and laser diffraction. The software is designed to accommodate various sample types and testing environments, allowing for both automated and manual control.
The Standard Operating Procedure (SOP) outlines a streamlined approach for automated and standardized testing, ensuring that results are consistent and reliable, regardless of the operator.
Automated system preparation
The Bettersizer software significantly enhances data quality by automating essential instrument functions such as optical alignment, sample dispersion, and system cleaning. Automated processes like these ensure optimal instrument performance, thereby improving the accuracy, precision, and repeatability of the data.
Real-time testing
Bettersizer software delivers immediate insights regarding particle size distribution and shape throughout the testing process. These real-time results provide crucial information about the progression and outcomes of the test, enabling precise adjustments to achieve optimal results.
Data evaluation and reporting
The Bettersizer software stands out in delivering comprehensive data analysis and report generation functionalities. By leveraging a range of data points, charts, and visual representations, the software allows users to customize and tailor reports to meet specific requirements, resulting in clear and informative reports. The effectiveness of the outcomes can be assessed with the support of data evaluation tools.
Image Credit: Bettersize Instruments
Reporting and data export
Highly customizable report
Complete and comprehensive data: Cumulative and frequency distribution graphs, an easy-to-understand distribution table, and other methods for data analysis
Editability: Users can easily change the font, layout, format, and other components of the reports.
Convertibility: Reports can be effortlessly converted into PDF, Excel, Text, and various other formats.
Image Credit: Bettersize Instruments
Videos
How to Perform Dry Particle Size Analysis with Bettersizer 2600 Plus + BT-912 Tutorial
How to perform dry particle size analysis with Bettersizer 2600 Plus + BT-912 tutorial. Video Credit: Bettersize Instruments
How to Measure Corundum Particle Size Using Bettersizer 2600 Plus + BT-812 Wet Dispersion Unit
How to measure corundum particle size using Bettersizer 2600 Plus + BT-812 wet dispersion unit. Video Credit: Bettersize Instruments
Fundamentals of Bettersizer 2600 Plus | All-in-One Particle Size and Shape Analyzer
Fundamentals of Bettersizer 2600 Plus | all-in-one particle size and shape analyzer. Video Credit: Bettersize Instruments
Bettersizer 2600 Plus Overview | All-in-One Particle Size and Shape Analyzer
Bettersizer 2600 Plus overview | all-in-one particle size and shape analyzer. Video Credit: Bettersize Instruments
Snippet - How to Measure Particle Size of Coffee Powder
Snippet - How to measure particle size of coffee powder. Video Credit: Bettersize Instruments
How to Measure Particle Size of Cosmetics
How to measure particle size of cosmetics. Video Credit: Bettersize Instruments
How to Measure Particle Size of Coffee Powder
How to measure particle size of coffee powder. Video Credit: Bettersize Instruments
