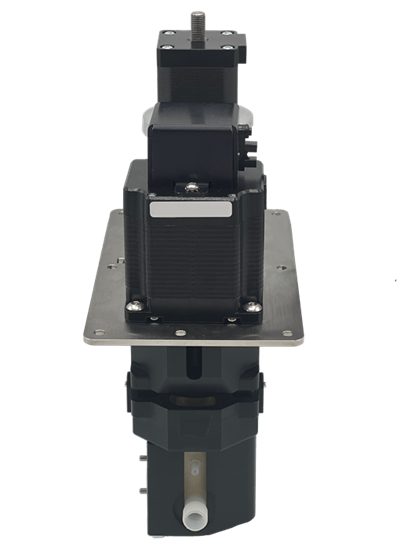

The FENYX+™ Variable Dispense pump builds on the established performance of its predecessor by substantially extending its flow range and increasing versatility.
Designed to address the evolving needs of the life sciences industry, this next-generation pump delivers accurate, dependable fluid handling across a wide range of applications.

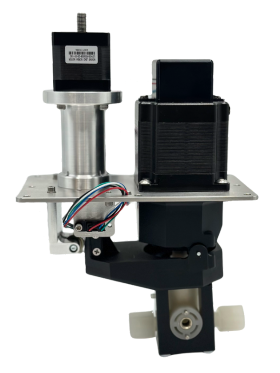

Image Credit: Fluid Metering, Inc.
Want to know more? Download the brochure
Product details
This technologically advanced fluidic device addresses the increasing demand for simplified system architecture and delivers higher throughput, lower cost of ownership, and accurate dispensing.1
Source: Fluid Metering, Inc.
| Available Options |
Dispense Volume Range (μl/rev) |
Flow Rate Range (mL/min) |
| FENYX+ |
250-1150 μl/rev |
0.25-1322.5 mL/min |
Specifications
Motor type
Linear: NEMA 14 (35 mm)
Rotational: NEMA 23 (57 mm)
Motor speed
Linear: Up to 1750 rpm
Rotational: Up to 1150 rpm
Electrical (Rated current)
Linear: 1.5 A
Rotational: 4.2 A
Operating temperature range
0 °C to 50 °C (32 °F to 122 °F)
Operating pressure range
0-30 psig (0-2.1 bar)2
Software
Download the controller software to install and configure the pump into the system.
Download the Brochure for More Information
Disclaimer
1 Fluid Metering pump performance can vary based on the application conditions and user setups. We recommend consulting an expert or our technical support team for tailored assistance.
2 Ratings depend on selected pump heads.
