The Accelerated Stability Assessment Program (ASAP) reach-in chambers provide remarkable performance for testing applications that require wide temperature and humidity ranges.
Video Credit: Environmental Specialties, LLC
ASAP testing can significantly reduce the time and resources required for stability testing. However, because this approach requires more extreme environmental conditions, ASAP reach-in chambers must meet exacting standards. Our chambers are engineered to deliver stringent volumetric uniformity and designed for compliance with International Council for Harmonisation (ICH) Q1A.
Environmental Specialties has provided ASAP reach-ins to leading pharmaceutical companies, food and beverage producers, cosmetics brands, medical device manufacturers, and others. Their chambers are suitable for a wide range of applications including:
- Extended range testing
- Packaging studies
- Freeze/thaw thermal cycling
- Biomedical storage
- Stability research
- Drug research
Versatile ASAP chamber design
The reach-in chamber product line includes seven standard models designed to meet virtually any storage need. Broader customization options are available.
Capabilities
- Temperature setpoint of +70°C, with accuracy of +/-1°C or less
- Maintain 10- to 98-percent relative humidity (RH), with accuracy of +/-5 percent or better
- CO2 injection
- Volumetric uniformity (horizontal and vertical)
- Controlled humidification
Construction and features
- 22-gauge, stainless-steel interior
- Scratch-resistant enamel exterior
- Three-inch, closed-cell urethane insulation to promote superior temperature stability and minimal heat transfer
- Heavy-duty door hinges, full peripheral magnetic door gaskets, and positive-action latch with lock for a secure, uniform seal
- Up to 130 pounds of distributed load can be supported by shelving
- Floor models have independent, non-marking casters with adjustable leveling feet for convenient installation
Special options
Environmental Specialties can design the ASAP chambers to fulfill a wide range of special requirements, including:
- Trim for in-wall installation
- High RH
- External stainless-steel construction
Model specs and sizes
Benchtop
- Volume: 12.0 cubic feet (340 liters)
- Shelves: 2 standard/7 max
- Four-wire Electrical Volts / Ø / Amps: 208-230 / 1 / 30
- Exterior Dimensions: 41 x 34.5 x 52.5 inches
- Weight Range: 350 to 600 pounds
Image Credit: Environmental Specialties, LLC
Compact
- Volume: 25.2 cubic feet (714 liters)
- Shelves: 4 standard/14 max
- Exterior Dimensions: 41 x 34.5 x 76.5 inches
- Four-wire Electrical Volts / Ø / Amps: 208-230 / 1 / 30
- Weight Range: 425 to 750 pounds
Image Credit: Environmental Specialties, LLC

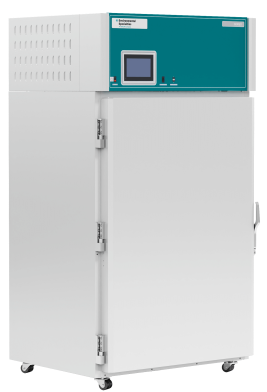

Upright
- Volume: 33.8 cubic feet (957 liters)
- Exterior Dimensions: 41 x 34.5 x 91.5 inches
- Four-wire Electrical Volts / Ø / Amps: 208-230 / 1 / 30
- Shelves: 4 standard/19 max
- Weight Range: 450 to 775 pounds
Image Credit: Environmental Specialties, LLC
Compact doublewide
- Volume: 55.0 cubic feet (1557 liters)
- Shelves: 8 standard/28 max
- Exterior Dimensions: 82 x 34.5 x 76.5 inches
- Four-wire Electrical Volts / Ø / Amps: 208-230 / 1 / 30
- Weight Range: 1020 to 1200 pounds
Image Credit: Environmental Specialties, LLC
Upright doublewide
- Volume: 74.2 cubic feet (2,101 liters)
- Shelves: 8 standard/38 max
- Exterior Dimensions: 82 x 34.5 x 91.5 inches
- Four-wire Electrical Volts / Ø / Amps: 208-230 / 1 / 30
- Weight Range: 1020 to 1200 pounds
Image Credit: Environmental Specialties, LLC
Compact triplewide
- Volume: 86.0 cubic feet (2,435 liters)
- Shelves: 12 standard/57 max
- Exterior Dimensions: 123 x 34.5 x 76.5 inches
- Four-wire Electrical Volts / Ø / Amps: 208-230 / 1 / 30
- Weight Range: 1420 to 1600 pounds
Image Credit: Environmental Specialties, LLC
Upright triplewide
- Volume: 114.8 cubic feet (3,251 liters)
- Shelves: 12 standard/57 max
- Four-wire Electrical Volts / Ø / Amps: 208-230 / 1 / 30
- Exterior Dimensions: 123 x 34.5 x 91.5 inches
- Weight Range: 1420 to 1600 pounds
Image Credit: Environmental Specialties, LLC
