The pass-thru reach-ins are an excellent solution for transporting materials to and from clean room conditions without risk of contamination. Users can rely on pass-thru chambers to introduce material into a clean room or move goods between clean rooms. Skilled engineers have created a sophisticated reach-in chamber that can withstand the demands of delicate surroundings containing crucial products and equipment.
Video Credit: Environmental Specialties, LLC
These chambers are suitable for a wide range of applications found in a variety of demanding industries, including:
- Pharmaceuticals
- Biotechnology
- Laboratories
- Food and drug manufacturing
Versatile pass-thru chamber design
The reach-in chamber product line includes seven standard models designed to meet virtually any storage need.
Capabilities
- Temperature and humidity controlled
- HEPA filtration helps guarantee stored products are not at risk of cross-contamination
- Excellent volumetric uniformity (horizontal and vertical)
Construction and features
- 22-gauge, stainless-steel interior
- 3-inch closed-cell urethane insulation promotes superior temperature stability and minimal heat transfer
- Heavy-duty door hinges, full peripheral magnetic door gaskets, and positive-action latch with lock for a secure, uniform seal
- Customized trim strips for enclosure finishing
- Glass doors
- Stainless steel exterior
Special options
Environmental Specialties can design pass-through chambers to satisfy a range of extremely specialized requirements, such as:
- Windows provide light and visibility into or through the chamber
- Mirrored control enables verification of internal conditions from either side of the chamber
- NEMA 4× control panel
- Remote conditioning equipment
- Indicator lights, alarms, and interlocks
- Door interlocks
- Mechanical redundancy (DW and TW)
Model specs and sizes
Compact
- Volume: 25.2 cubic feet (714 liters)
- Shelves: 4 standard/14 max
- Exterior Dimensions: 41 x 34.5 x 76.5 inches
- Weight Range: 425 to 750 pounds
- Four-wire Electrical Volts / Ø / Amps: 208-230 / 1 / 30
Image Credit: Environmental Specialties, LLC
Upright
- Volume: 33.8 cubic feet (957 liters)
- Shelves: 4 standard/19 max
- Exterior Dimensions: 41 x 34.5 x 91.5 inches
- Weight Range: 450 to 775 pounds
- Four-wire Electrical Volts / Ø / Amps: 208-230 / 1 / 30
Image Credit: Environmental Specialties, LLC
Compact doublewide
- Volume: 55.0 cubic feet (1557 liters)
- Shelves: 8 standard/28 max
- Exterior Dimensions: 82 x 34.5 x 76.5 inches
- Four-wire Electrical Volts / Ø / Amps: 208-230 / 1 / 30
- Weight Range: 1020 to 1200 pounds
Image Credit: Environmental Specialties, LLC
Upright doublewide
- Volume: 74.2 cubic feet (2,101 liters)
- Shelves: 8 standard/38 max
- Exterior Dimensions: 82 x 34.5 x 91.5 inches
- Weight Range: 1020 to 1200 pounds
- Four-wire Electrical Volts / Ø / Amps: 208-230 / 1 / 30
Image Credit: Environmental Specialties, LLC
Compact triplewide
- Volume: 86.0 cubic feet (2,435 liters)
- Shelves: 12 standard/57 max
- Exterior Dimensions: 123 x 34.5 x 76.5 inches
- Weight Range: 1420 to 1600 pounds
- Four-wire Electrical Volts / Ø / Amps: 208-230 / 1 / 30
Image Credit: Environmental Specialties, LLC

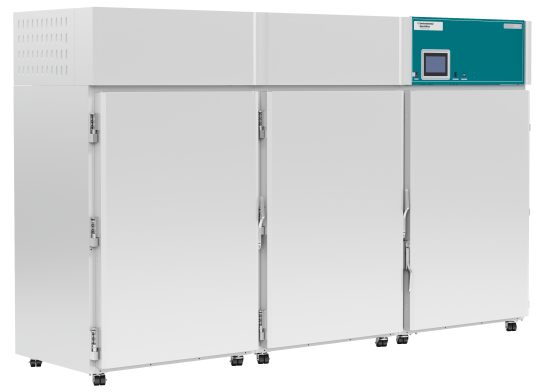

Upright triplewide
- Volume: 114.8 cubic feet (3,251 liters)
- Shelves: 12 standard/57 max
- Exterior Dimensions: 123 x 34.5 x 91.5 inches
- Weight Range: 1420 to 1600 pounds
- Four-wire Electrical Volts / Ø / Amps: 208-230 / 1 / 30
Image Credit: Environmental Specialties, LLC
