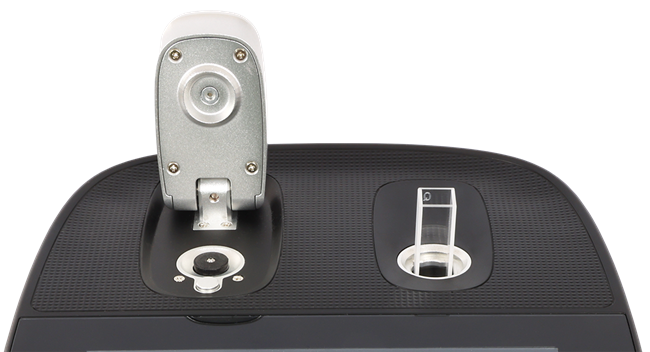

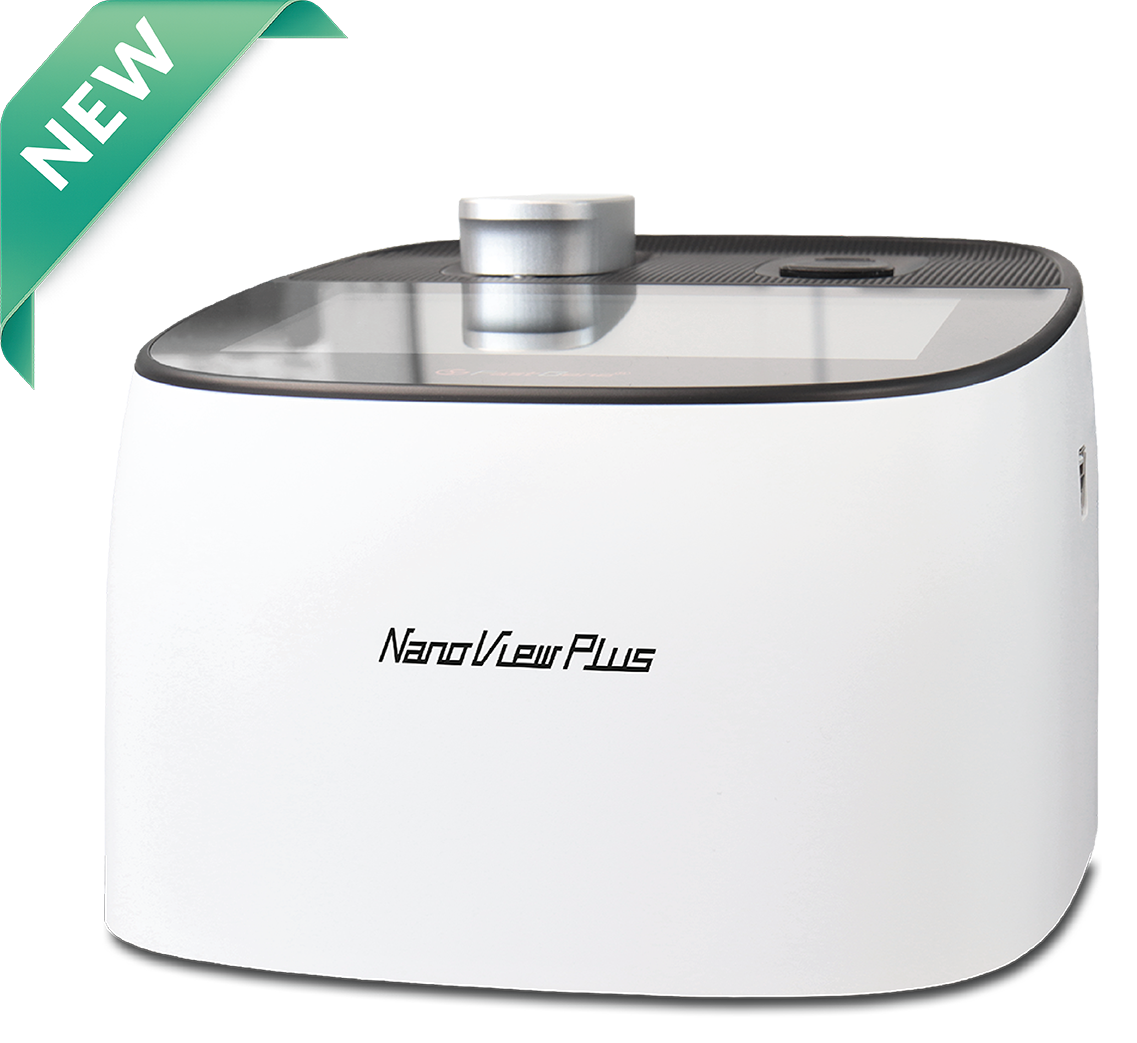

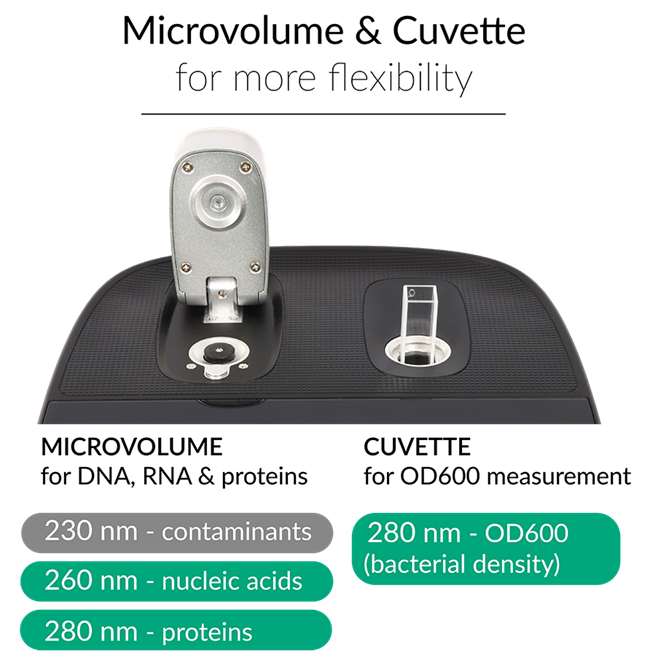

The FastGene® NanoView Plus Photometer is a high-precision instrument for rapid quantification of DNA, RNA, and proteins. The system is also used to measure bacterial density in OD600 mode and supports both cuvette and microvolume measurements.
- 230 nm – contaminants
- 260 nm – nucleic acids
- 280 nm – proteins
- 600 nm – OD600 (bacterial density)
The system has been designed for everyday workflows:
- Clear purity evaluation
- Rapid measurements
- Consistent performance across a broad range of sample concentrations
Image Credit: NIPPON Genetics EUROPE
- Improved stability and precision due to the Xenon flashlamp
- Built for everyday workflows:
- Clear purity assessment
- Rapid measurements
- Reliable performance across a broad range of sample concentrations
- Convenient data management
- Fast measurement time: < 1 sec
Download the Brochure for More Information

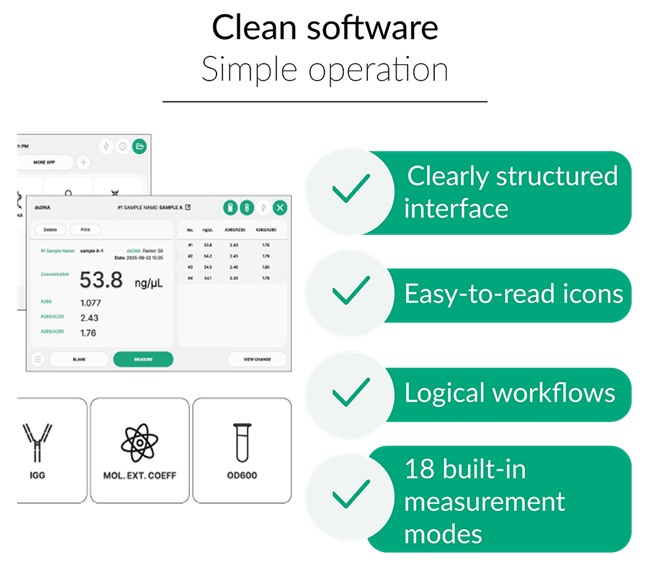

Clean software | Simple operation

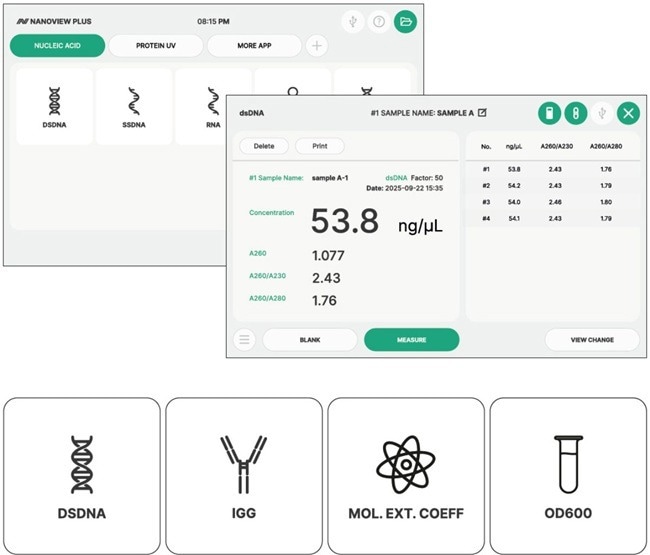

The FastGene® NanoView Plus interface is designed with a clear, intuitive layout, guiding users through a logical workflow and easy‑to‑read icons.
With 18 built‑in measurement modes, the results are presented in a clear, easy‑to‑read format for rapid interpretation.
Image Credit: NIPPON Genetics EUROPE
Precision Xenon flash lamp | Optimal light source
The system uses a xenon flash lamp as its light source.
- Stable light output for consistent results
- Consistent performance over time
- Low maintenance, long lifetime
- Rapid measurements
- No warm-up time needed

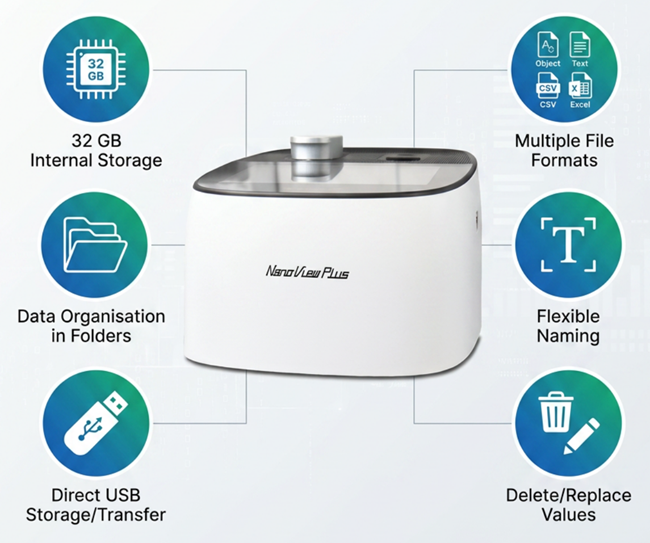

Convenient data management
With an integrated file management system, the FastGene® NanoView Plus allows seamless access, organization, and transfer of measurement data.
- Data organization in folders
- Flexible naming of measured values
- Direct data storage or transfer to an external USB drive possible
- Deletion or replacement of individually selected measured values possible
- Internal storage: 32 GB
- Data can be saved as a text file, an Excel file, a CSV file, or an object file
Image Credit: NIPPON Genetics EUROPE
Download the Brochure for More Information
Specifications
Source: NIPPON Genetics EUROPE
| . |
. |
. |
| Display |
7" LCD touch display (glove compatible) |
| Measurement time |
< 1 sec |
| Wavelengths |
- Microvolume: 230 nm / 260 nm / 280 nm
- Cuvette: 600 nm (OD600)
|
| Wavelength accuracy |
± 1 nm |
| Sample volume |
1–2 μL (microvolume) |
| Light source |
Xenon flash lamp |
| Detector |
CMOS linear image sensor (2048 pixels) |
| Detection limit |
- dsDNA: 2.0 ng/μL
- RNA: 1.6 ng/μL
- BSA: 0.06 mg/mL
- IgG: 0.03 mg/mL
|
| Connectivity / Storage |
- 4 × USB ports, Ethernet, RS-232
- 32 GB internal storage
|

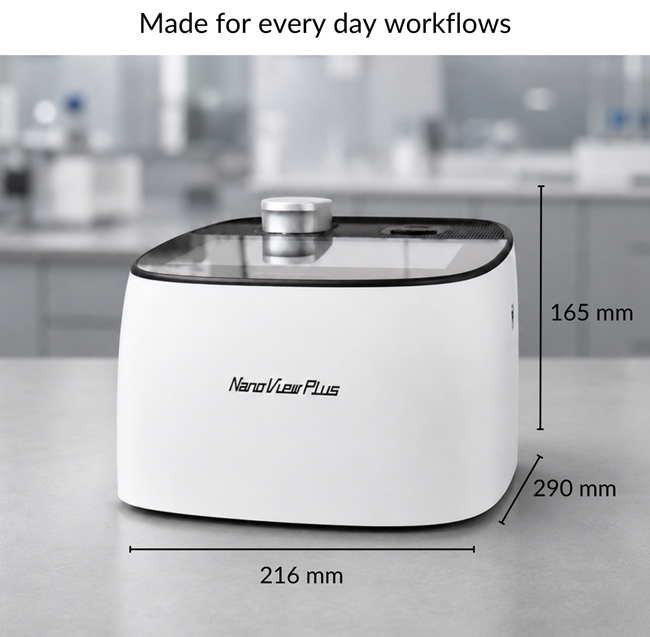

| Dimensions |
216 nm x 165 nm x 290 nm |
| Weight |
3.0 kg |
Image Credit: NIPPON Genetics EUROPE
Image Credit: NIPPON Genetics EUROPE
Image Credit: NIPPON Genetics EUROPE
