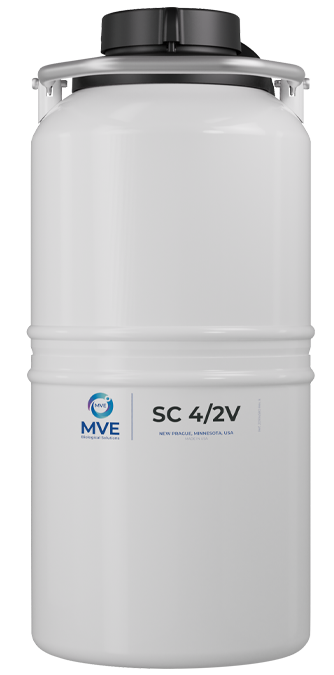

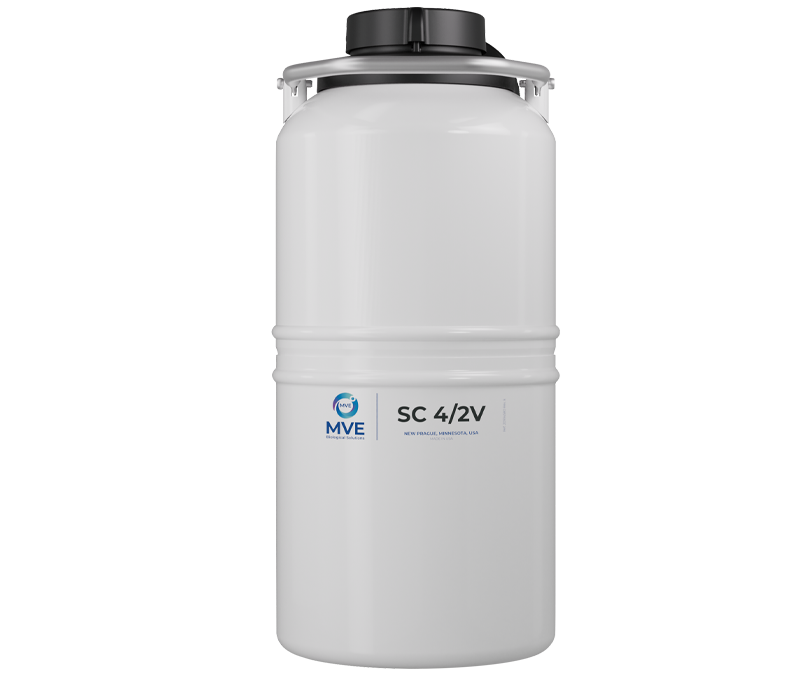

MVE 4/2V & 4/3V series for cryogenic sample transport

Secure and transport samples with confidence using the MVE 4/2V and 4/3V Series.

Enhanced performance and reliability with next-generation vapor shippers

MVE has redesigned its widely used 4L vapor shippers–the SC 4/2V and SC 4/3V–to provide improved performance and reliability. The SC Series dewars, recognized across the industry for their efficiency and durability, now incorporate patented BEND DON’T BREAK^™ technology.

This advanced design features a newly contoured top head that flexes under high G-force conditions, enabling the dewar to absorb impact more effectively and substantially reducing the likelihood of structural damage during transport.

Additionally, MVE’s patent-pending Vapor Shield Technology helps protect against vacuum degradation resulting from LN₂ overfill, further enhancing long-term performance.

These innovations reflect MVE’s continued focus on advancing cryogenic technology, supporting superior vacuum integrity, and reinforcing the SC Series as a trusted solution for long-term cryogenic storage.

Image Credit: Air Products PLC

Features

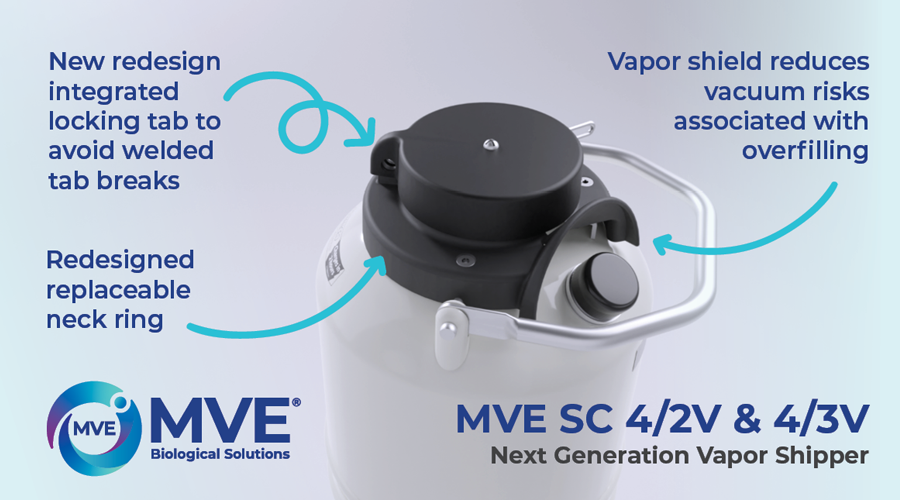

• Enhanced inner construction: Improved design engineered to withstand the physical demands of shipping and handling
• Durable neck ring design: Greater structural strength to help prevent breakage during transport
• Integrated locking tab: Eliminates the risk of welded tab failures for enhanced security
• Improved hold times: Extended hold times ranging from 19 to 26 days, helping reduce the risk associated with shipment delays
  • SC 4/2V: Increased from 13 days to 19 days
  • SC 4/3V: Increased from 21 days to 26 days
• Vapor Shield Technology: Reduces the potential for vacuum degradation caused by LN₂ overfill

Image Credit: Air Products PLC

Models and maximum storage capacities

Source: Air Products PLC
