Electron diffraction of intracellular protein crystals

Accessing Intracellular Protein Crystals for Electron Diffraction Using Fluorescence-Guided Cryo-FIB Lamella Preparation

This article describes a workflow for resolving protein structure from crystals grown inside producing cells, based on the recently introduced IncelluloED pipeline, which extends the InCellCryst method of intracellular protein crystal production.^1,2

This approach bypasses time-consuming protein purification steps, thereby reducing the number of crystals (ideally to one) required compared with X-ray diffraction methods.

The range of applicable target proteins is also broadened to include those that crystallize with low efficiency, which are otherwise ineligible for untargeted scanning approaches.

The key challenge within this work lies in reliably localizing and targeting potentially rare crystals of interest while ensuring their preparation as electron‑transparent samples from vitrified cells without disrupting the intracellular crystal in situ.

Site-specific cryo-FIB lamella preparation is therefore a key step in ensuring that intracellular crystals are accessible for electron diffraction analysis.

The workflow presented here combines cryo-fluorescence-based localization with targeted cryo-FIB milling using the Tescan AMBER cryo-FIB-SEM system, enabling precise targeting and preparation of lamellae from selected regions of interest.

Challenge statement

Intracellular protein crystals are generally embedded deep within vitrified cellular volumes that are several micrometers thick, placing them beyond the practical penetration depth of electrons in TEM.

Identifying these often rare crystals within crowded cellular environments remains challenging, particularly when precise three‑dimensional positioning is required to avoid missing the target during milling.

At the same time, electron diffraction requires site-specific thinning to lamella thicknesses below ∼300 nm, placing high demands on targeting accuracy and preparation precision.

To address this, fluorescence‑guided approaches enable reliable localization and correlation with cryo-FIB, ensuring accurate transfer of positional information and improving targeting reliability and overall success rates in this application.

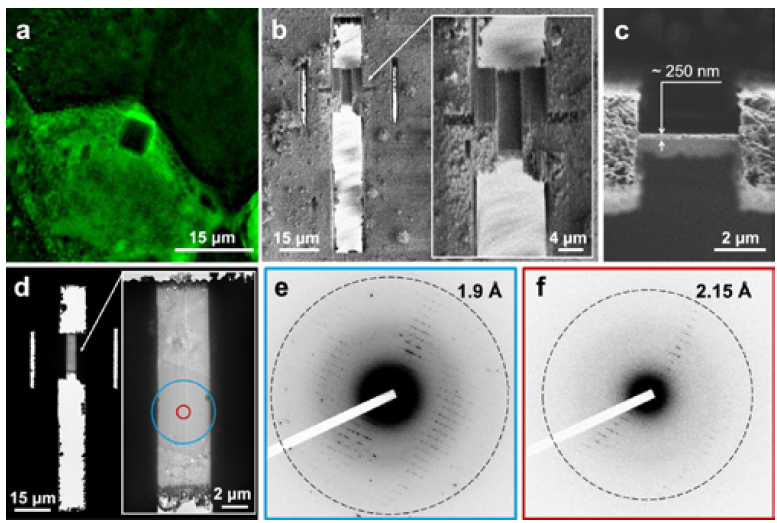

Figure 1: Successfully targeted crystal (a) the original negative fluorescence image of the selected crystal while (b,c) shows SEM and FIB images of the finished lamella containing the same crystal. The crystal is clearly visible on the TEM image in (d) along with diffraction pattern (e) and (f) resulting from fields of view outlined with blue and red circles (Bílá, Pinkas et al. 2026).

Conclusion

Building on these requirements, the fluorescence‑guided, site‑specific cryo-FIB approach presented here provides a practical solution by enabling accurate localization, depth determination, and controlled lamella preparation from selected regions of interest.

By improving targeting accuracy and reproducibility, this workflow significantly increases the success rate of accessing intracellular crystals suitable for electron diffraction analysis.

The full workflow and representative results are described in detail in the complete publication.

Download the full article now to learn more

References and further reading

1. Bílá, Š., et al. (2026). Single-cell structural biology with intracellular electron crystallography. Nature Communications, 17(1). DOI: 10.1038/s41467-026-69205-6. https://www.nature.com/articles/s41467-026-69205-6.
2. Schönherr, R., et al. (2024). A streamlined approach to structure elucidation using in cellulo crystallized recombinant proteins, InCellCryst. Nature Communications, 15(1). DOI: 10.1038/s41467-024-45985-7. https://www.nature.com/articles/s41467-024-45985-7.
3. Schindelin, J., et al. (2012). Fiji: an open-source Platform for biological-image Analysis. Nature Methods, 9(7), pp.676–82. DOI: 10.1038/nmeth.2019. https://www.nature.com/articles/nmeth.2019.
