Precise measurement of sampled air volume is the foundation of reliable industrial hygiene data, significantly influencing worker exposure evaluations, regulatory compliance, and overall data validity.
Issues that persist include:
- False lows – Health risks and regulatory violations
- False highs – Unnecessary controls and costs
- Any false result is replicated by the professional producing it
Flow measurement types
- Standardized/Mass Flow – VOC/vapor exposures under varying T&P
- Volumetric – Correct operation of PM size-selective cyclones
Primary vs. secondary standards
Source: Mesa Laboratories, Inc
|
Primary Standard |
Secondary Standard |
| Example |
Piston prover |
LFE / Venturi sensor |
| Measurement |
Direct SI: vol ÷ time |
Derived (pressure, viscosity) |
| NIST Traceable |
Higher Traceability |
Lower Traceability |
| Defensibility |
Legally defensible |
Higher uncertainty |
| OSHA/NIOSH |
Recommended |
Acceptable with limits |
Evolution: Soap Bubble > Rotameters > Bell Provers > Piston Provers
Modern piston provers offer greater accuracy, portability, & automation.
Standardization (Gas/vapor)
Source: Mesa Laboratories, Inc
| Sampling Type |
Ref. Conditions |
| IH Sampling |
25 °C / 760 mmHg |
| Environmental |
20 °C / 760 mmHg |
~5% error per 15 °C temperature change, ~5% error per 1400 ft elevation change
Good calibration practices
- Utilize the appropriate calibrator for the specific application
- Operate within the flow range of the calibrator
- Achieve an accuracy requirement of ±1% as per OSHA OTM standards
- Perform calibration with the complete sampling train in-line
- Align with field conditions, including tubing, filtration, temperature, and pressure
- Check the battery status; if it is unresponsive, either reset it or contact technical support.
- Conduct calibration under the conditions present at the sampling site rather than in the laboratory.
Common pitfalls to avoid
- Inaccurate or out-of-range calibrator
- Omitting pre- or post-sampling calibration verifications
- Failing to monitor calibration due dates
- Discrepancy between environmental conditions in the lab and the field
- Exposure to condensation, dirt, or direct sunlight
- Dependence on third-party 'pre-calibrated' pumps – shipping can alter calibration, and supplier conditions seldom align with the sampling site
- Standardizing particulate matter samples or neglecting standardization for gases/vapors
Ensuring reliable and defensible results
Prefer primary standards

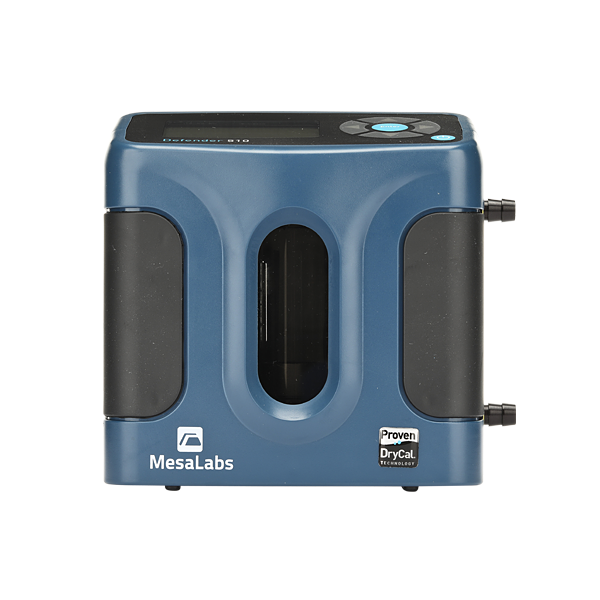

Piston provers measure volume directly, divided by time. They are NIST-traceable, legally defensible, and designed with an accuracy of ±1%.
Use OEM service
OEMs offer multi-point calibrations, dimensional checks, and original components accompanied by proprietary diagnostics.
ISO/IEC 17025-accredited labs
Independent auditors confirm the complete NIST traceability chain. Data is supported by validated and audited methodologies.
Document everything
Document the date, time, location, device ID, flow, temperature, pressure, and operator. This information is mandated by OSHA/NIOSH protocols.
