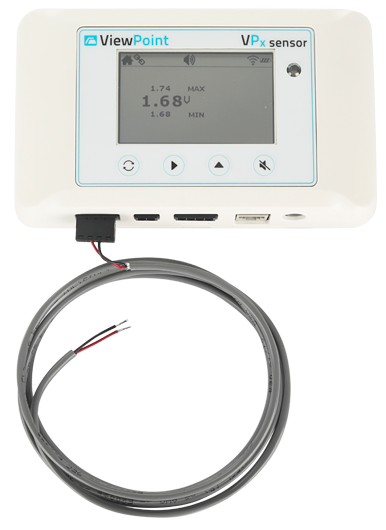

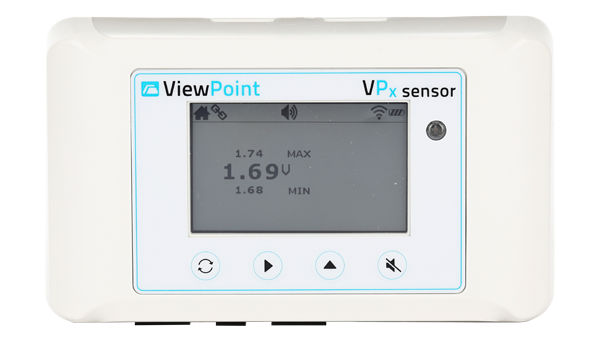

ViewPoint VPx Wi-Fi sensor for environmental monitoring

The ViewPoint VPx Wi-Fi sensor is employed in ongoing environmental monitoring, offering real-time data tracking and dependable process supervision.

Image Credit: Mesa Labs, Inc.

Intelligent 

Mesa Labs' VPx Wi-Fi Sensors are equipped with an LCD screen and a touch-button user interface that displays real-time readings and cumulative minimum and maximum values since the last reset. They also include local audible and visual alert capabilities and communicate wirelessly using a 2.4 GHz Wi-Fi (802.11 b/g) radio transmission.

Multi-purpose 

Crafted for compatibility with numerous interchangeable external probes, Mesa Labs' VPx Wi-Fi Sensors offer a singular adaptable interface for an extensive array of inputs. VPx Wi-Fi Sensors, along with their inputs and alert notifications, can be set up via web-based ViewPoint Software applications.

Compliant 

The ViewPoint VPx Wi-Fi Sensor not only meets but also surpasses the functional requirements set by the CDC’s Vaccines for Children (VFC) program, featuring an LCD display and the capability to locally store more than 4000 readings. It comes with interchangeable measurement probes that are provided with either an NIST certification or an optional ISO-17025 calibration certification.

Image Credit: Mesa Labs, Inc.

Technical specifications

General 

• 2.75-inch black and white LCD display featuring a user interface; local audio and visual (LED) alerts
• Two analog channels, one digital channel, and one door switch/motion/alarm contact input channel
• Local data storage capacity exceeding 4000 readings
• FCC/IC Certified and compliant with RoHS standards
• Compatible with SpectraLink^® or MobileAccess^® Distributed Antenna Systems (DAS)

Data transmission 

• Wi-Fi 2.4 GHz (802.11 b/g) radio transmission; certified by the Wi-Fi Alliance for WPA2-PSK 

Power 

• Dual Power Alternatives: A 5 V DC line and/or two AA 3.6 V lithium-ion batteries serve as a backup during power interruptions 

Dimensions and weight 

• Dimensions: 5” W × 3.25” H × 1.125” D 
• Dimensions with cradle: 5.625” W × 4.125” H × 1.625” D 
• Weight: approximately 7 ounces 
• Weight with cradle: approximately 9 ounces 

Sensor operation range 

• Operating relative humidity range: ≤95 % (non-condensing)
• Operating temperature range: 0 ºC to +70 ºC 

Software compatibility 

• ViewPoint Cloud software
• ViewPoint OnPrem software

Product options

• Wireless data transfer using Wi-Fi 2.4 GHz (802.11 b/g) or the Region 2 ISM band (902-928 MHz)
• Temperature, humidity, CO₂, O₂, door status, horizon motion detection, dry contact, power, DC voltage, 4–20 mA, differential pressure, particle count, and leak detection are just a few of the user-configurable input types.
• To maintain regulatory compliance, interchangeable external probes allow the yearly replacement of outdated probes with brand-new, factory-calibrated ones.
