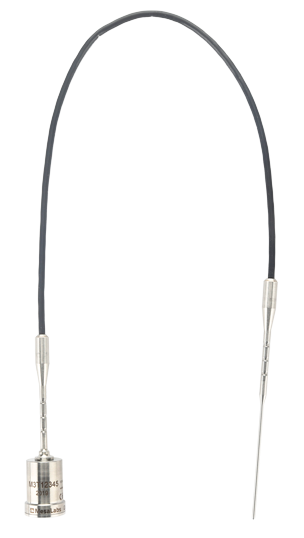

The Silicon Flex Needle Tip is designed for accurate temperature measurement in delicate packaging and goods. Featuring a sharp, thin, needle-like shape, it allows for clean, minimum puncture entry through caps, seals, or tiny packaging materials, guaranteeing precise core temperature monitoring while maintaining package integrity.
- Form: Slim, sharp needle-like tip for precise insertion
- Fit: Ideal for applications that require penetration of fragile seals, caps, or products with minimum puncture resistance
- Function: Provides accurate core temperature monitoring in delicate packaging situations without considerable structural compromise
- Applications: Ideal for pharmaceutical packaging validation, food safety testing, and other important procedures that need precision and little disturbance
The Silicon Flex Needle Tip is available in bespoke lengths of up to 24” and is adaptable to a wide range of monitoring applications.
Technical specifications
Size
- Probe Length: 2”
- 0.7” W × 0.9” L
- Flexible Lengths: 6”, 12”, and custom up to 24”
Material
- Sapphire IR windows
- 316 stainless steel
Power
- Field-replaceable lithium battery
Range
- Operating pressure: up to 10 BAR
- Resolution: 0.001 °C
- Temperature: –20 ° to 140 °C (depending on options selected)
- Temperature accuracy: 0.1 °C to .5 °C (depending on options selected)
- Clock accuracy: 26 seconds per 24 hours
Calibration
- Field calibrated (MPIII Temp/Dual only)
- Factory calibrated (NIST-traceable)
Memory
- 16,000 time/temperature observations
Certifications
- ATEX for intrinsic safety
Product options
Flex cable standard lengths
