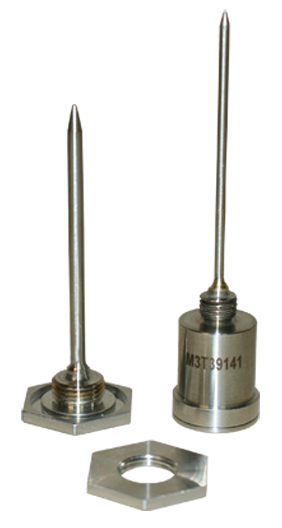

Thermowell data logger for thermal processes

The Thermowell enables the installation and removal of a logger without damaging the seal. Thermowells can be welded directly into piping, allowing the logger to be readily removed and changed without interrupting the operation.

Thermowell is an excellent choice for SIP or CIP systems at common monitoring points. This MPIII logger is made from the same sturdy materials expected by DataTrace's customers, and it incorporates threads at the base of the probe that allow it to be easily connected and withdrawn from the Thermowell without breaking the seal.

• Cooking and retort applications
• Vacuum procedures
• Steam-in-place (SIP)
• Cleaning-in-place (CIP)

Technical specifications

Operating temperatures

• -20 °C (-4 °F) to +140 °C (+284 °F)

Temperature accuracy

• ± 0.1 °C (±.2 °F)

Operating pressure

• Up to 10 Bar

Physical

• Weight: 0.5 oz. (15 grams)*
• Material: 316 stainless steel; Sapphire IR windows

*For logger body only

Monitoring parameters

• Memory: 16,000 time/temperature observations
• Sample rates: Operator programmable from one-second to 18-hour intervals

Mechanical

• Calibration:
  • Factory calibrated (NIST traceable)
  • Field calibration
• Certifications: ATEX (for intrinsic safety)
• Battery Type: Lithium (field-replaceable)
• Clock accuracy: 26 seconds per 24 hours
