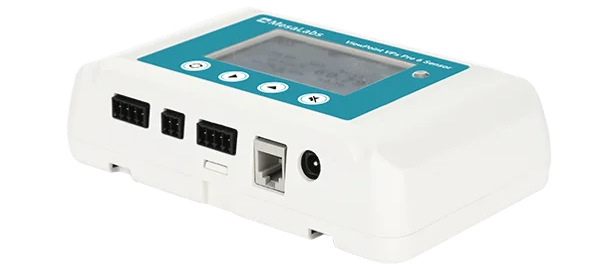

The VPx Pro 6 900 MHz Sensor has been re-engineered to include substantial enhancements in signal range, strength, and efficiency, ensuring greater reliability. The sensor features lower power consumption and higher accuracy, making it the latest-generation universal wireless transmitter.
Image Credit: Mesa Labs, Inc.
Seamless integration
The VPx Professional Sensor, designed in its sixth generation, is compatible with fourth- and fifth-generation CheckPoint G4 and VPx systems. This compatibility enables the expansion and upgrading of legacy ViewPoint and CheckPoint Continuous Monitoring Systems as required, thereby enhancing the lifespan and value of the original systems.
Intelligent

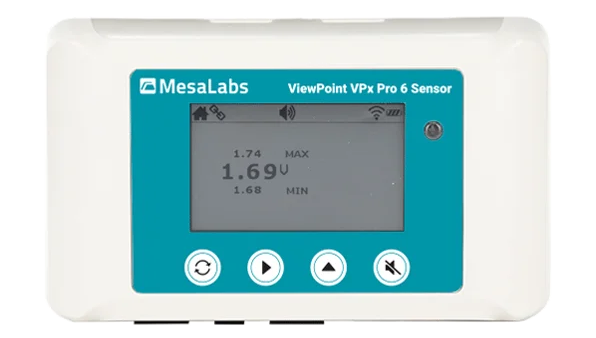

The VPx Pro 6 Sensor is equipped with an interactive LCD screen interface that features touch buttons and displays real-time readings along with cumulative minimum and maximum data values. The sensor also includes local audible and visual alerts, guaranteeing that notifications for any out-of-range occurrences are not reliant on network or server functionality.
Versatile

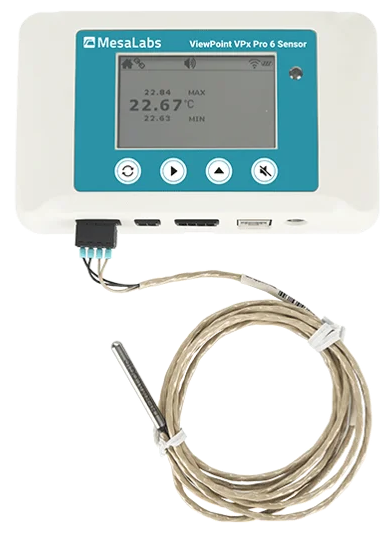

The adaptable and modular configuration, featuring four input ports and interchangeable external probes, enables real-time continuous observation of various environmental parameters, including tailored applications, through a single, highly versatile sensor unit. This eliminates the necessity for multiple transmitters to track different parameters.
Image Credit: Mesa Labs, Inc.
Compliant
The VPx Pro 6 meets and exceeds the Vaccines for Children (VFC) standards for vaccine temperature monitoring, featuring onboard memory capable of storing up to 10,000 time-stamped data points, programmable logging intervals, local alarms for temperatures outside the acceptable range, a low-battery warning, and detachable buffered probes.
Technical specifications
Source: Mesa Labs, Inc.
| General |
|
| Application range: |
-200 °C to +300 °C |
| Operating range: |
+15 to +70 °C and 0–90 % relative humidity (RH) non-condensing |
| Display: |
2.75” B&W LCD display with user interface; local audio (beeping) and visual (flashing LED) alerts |
| Inputs: |
Two analog inputs (RTD temperature probe, 0–1 V, 0–5 V, 0–30 V, or 4–20 mA)
One digital input (I2C temperature/humidity probe or differential pressure)
One dry contact/binary input (door switch, motion sensing, or alarm contact) |
| On-board memory: |
Local data storage of up to 10,000 logged data points |
| Certification: |
FCC/IC certified and RoHS compliant |
| Data transmission |
|
| Radio: |
Region 2 ISM band (902–928 MHz) |
| Power |
|
| Power options: |
Three AA-size 3.6V, 2.4 Ah lithium batteries or
Three A-size 3.6 V, 3.6 Ah lithium batteries or
Three AA-size 1.5 V alkaline batteries or
External 5 V/1 A AC power adapter (line powered with battery backup) |
| Dimensions and weight |
|
| Dimensions (W x H x D): |
5” x 3.25" x 1.125” |
| Dimensions with cradle (W x H x D): |
5.625” x 4.125” x 1.625” |
| Weight, sensor: |
approximately 7 ounces (with Li-ion batteries) |
| Weight, sensor with cradle: |
approximately 9 ounces (with Li-ion batteries) |
Software compatibility
- ViewPoint Cloud software
- ViewPoint OnPrem software
