The Blood Bank Refrigerator B51 has a storage capacity of 45 L | 1.59 cubic feet.
Image Credit: B Medical Systems
- External dimensions (H × W × D): 670 × 495 × 575 mm | 26.38 × 19.49 × 22.64 in
- Refrigerant Type: Natural R600a
- Set Temperature: +4 °C
- Climate class (ambient temperature range): +10 °C to +32 °C
- Alarm limits: +2 °C | +6 °C
Download the Brochure for More Information
Reliability
Image Credit: B Medical Systems
- A forced air cooling system ensures consistent and steady temperature distribution
- Fast temperature recovery, even with numerous door openings
- The safety thermostat prevents temperatures below freezing
- Extended autonomy in the event of power breakdown
- An audiovisual alarm system that can be remotely transmitted via email or SMS
- °B Connected with a Data Communication Unit, connected universal software for long-term archiving, reporting, and remote monitoring (under FDA 21 CFR Part 11)
Efficiency
Image Credit: B Medical Systems
- High-efficiency natural refrigerant that complies with EU F-Gas and US SNAP requirements
- Strong thermal insulation is provided via polyurethane foam injections into polypropylene cabinets
- Sealed gaskets and a four-layer glass window reduce cold air loss
- Interior automatic LED lighting to reduce energy consumption
- One-piece cabinet created using the unique method of rotational molding
Convenience
Image Credit: B Medical Systems
- Simple USB data export

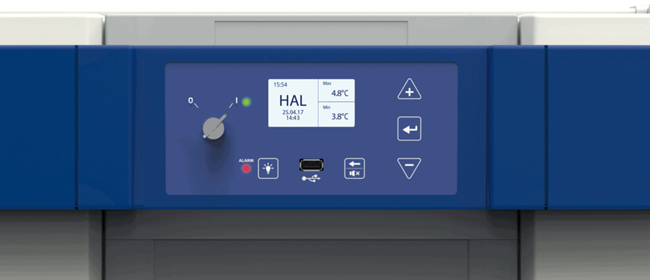

- Electronics with a temperature display that is easily accessible
- Gasket heater minimizes condensation
- Lifetime warranty corrosion-free cabinet
- Surfaces that are smooth and cleanable
- Low-noise appliance
- Low heat emission
- Modular interior equipment
- Improved visibility of the refrigerated content through an organic glass window
Download the Brochure for More Information
Technical specifications
Source: B Medical Systems
| . |
. |
| Gross volume |
52 L | 1.84 cu ft |
| Storage Capacity |
45 L | 1.59 cu ft |
| Blood bag capacity (450 ml) |
24 |
| Blood bag capacity (350 ml) |
31 |
| Set Temperature |
+4 °C |
| Alarm limits |
+2 °C | +6 °C |
Climate class
(ambient temperature range) |
+10 °C to +32 °C |
| Certifications |
cCSAus | EU MDR Class IIa | ISO 14644-1 | Class 4 | SCoPE | US FDA Class II |
| Cooling technology |
Forced air cooling system |
| External dimensions (H × W × D) |
670 × 495 × 575 mm | 26.38 × 19.49 × 22.64 in |
| Internal dimensions (H × W × D) |
470 × 375 × 350 mm | 18.50 × 14.76 × 13.78 in |
| Net weight |
39 kg | 85.98 lb |
| Frequency |
50-60 Hz |
| Supply voltage |
220-240 V |
| Energy consumption |
0.8 kWh/24 h |
| Noise level |
35 dB |
| Refrigerant Type |
Natural R600a |
| Heat emission |
29 Kcal/h |
| Materials |
Polypropylene/aluminum |
| Display |
Digital display |
| Remote monitoring |
Optional °B Connected software via data communication unit |
| Hold over time |
1.5 h (+4 °C to +10 °C) |
| Defrosting technique |
Natural |
| Access control |
Lock with two keys |
| Data export |
USB port |
| Product Type |
Blood Bank Refrigerator |
