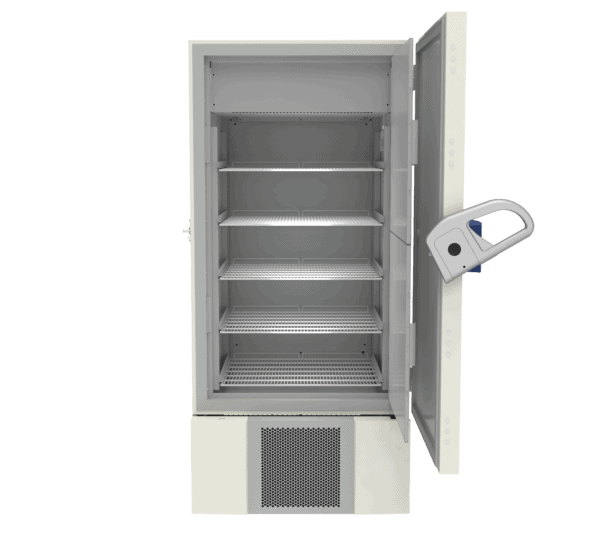

The F700 is a laboratory freezer with a storage capacity of 641 L | 22.64 cu ft.
- External Dimensions (H × W × D): 1988 × 992 × 1039 mm | 78.27 × 39.06 × 40.91 inches
- Climate Class (ambient temperature range): +10 °C to +43 °C
- Alarm Limits: -32 °C | -46 °C
- Set Temperature: -41 °C
- Refrigerant Type: Natural R290
Image Credit: B Medical Systems
Download the Brochure for More Information
Description
Accurate temperature control and 24/7 monitoring
- °B Connected universal software for remote monitoring, reporting (in compliance with FDA 21 CFR Part 11), and long-term archiving.
- Automatic switch-off of the evaporator fans at each door opening to reduce heat transfer.
- Audio-visual alarm system with remote transmission via SMS or email.
- Controlled air cooling system for uniform and stable temperature distribution.
- Extended autonomy in case of power failure.
- Fast temperature recovery even in the case of frequent door openings.
- Smart automatic defrosting technology enables a table temperature during the defrost cycle.
Image Credit: B Medical Systems
Energy-efficient and eco-friendly performance
- Frost prevention reduces pressure on the compressor.
- High cooling efficiency through natural refrigerants in conformity with US SNAP and EU F-Gas regulations.
- High-quality stainless steel cabinets with antibacterial coating and injected with thin polyurethane foam, providing high thermal insulation and storage capacity.
- Insulated inner doors, sealed gaskets and enhanced frame for minimized cold air loss and heat conduction.
Image Credit: B Medical Systems
Ergonomic design
- 7” touchscreen with temperature display easily accessible on the door handle.
- Easy access to the lower drawers.
- High-quality stainless steel and other materials for an extended life span.
- Minimal ice formation allows for easy deicing.
- Modular interior equipment.
- Password protected/NFC card-based door locking mechanism.
- USB port and SD card slot for easy export of data.
- Set point of -41 °C.
Image Credit: B Medical Systems
Download the Brochure for More Information
Technical specifications
Source: B Medical Systems
| . |
. |
| Gross volume |
791 L | 27.93 cu ft |
| Storage Capacity |
641 L | 22.64 cu ft |
| Set Temperature |
-41 °C |
| Temperature range |
-41 °C to -20 °C |
| Alarm limits |
– 32 °C | – 46 °C |
Climate class
(ambient temperature range) |
+10 °C to +43 °C |
| Certifications |
cCSAus | EU MDR Class I | ISO 14644-1 | Class 4 | US FDA Class I |
| Cooling technology |
Forced air cooling system |
| External dimensions (H × W × D) |
1988 × 992 × 1039 mm | 78.27 × 39.06 × 40.91 in |
| Internal dimensions (H × W × D) |
1173 × 740 × 738 mm | 46.18 × 29.13 × 29.05 in |
| Net weight |
319 kg | 603.28 lb |
| Frequency |
50 Hz |
| Supply voltage |
230V |
| Energy consumption |
7.4 kWh/24 h |
| Noise level |
45 dB |
| Refrigerant Type |
Natural R290 |
| Heat emission |
265 Kcal/h |
| Materials |
Stainless steel |
| Display |
7" touchscreen screen |
| Remote monitoring |
°B Connected software | RTMD included |
| Hold over time |
6.0 h (-41 °C to -10 °C) |
| Defrosting technique |
Automatic (hot gas) |
| Access control |
Password or badge |
| Data export |
SD card | USB port |
| Product Type |
Laboratory Freezer |
