Laboratory Refrigerator L290
The Laboratory Refrigerator L290 has a storage capacity of 269 liters (9.5 cubic feet).
Image Credit: B Medical Systems
- External dimensions (H × W × D): 1670 × 595 × 695 mm | 65.75 × 23.43 × 27.36 in
- Refrigerant Type: Natural R600a
- Set Temperature: +5 °C
- Climate class (ambient temperature range): +10 °C to +32 °C
- Alarm limits: +3 °C | +7 °C
Reliability
Image Credit: B Medical Systems
- Forced air cooling system to ensure uniform and steady temperature distribution
- Quick temperature recovery, even when opening the door frequently
- A safety thermostat keeps the temperature from dropping below freezing
- Greater autonomy in the event of a power outage
- An audiovisual alarm system that can be remotely transmitted via email or SMS
- °B Connected universal software for remote monitoring, reporting (in line with FDA 21 CFR Part 11), and long-term archiving in conjunction with a Data Communication Unit
Efficiency
Image Credit: B Medical Systems
- One-piece cabinet constructed using a specialized rotational molding process
- Natural refrigerant offers high cooling efficiency and meets US SNAP and EU F-Gas regulations
- Polypropylene cabinets, insulated with injected polyurethane foam, deliver strong thermal performance
- LED interior lighting activates automatically for energy savings
Convenience
Image Credit: B Medical Systems

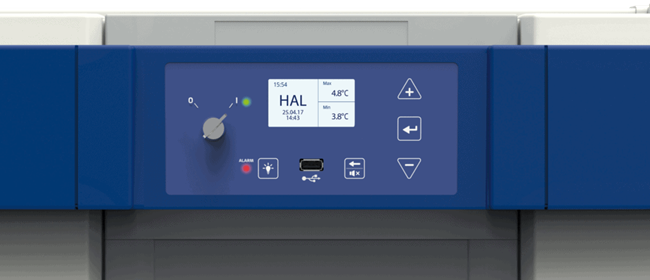

- Electronics with a temperature display that is easily accessible
- Reducing condensation using a gasket heater
- Lifetime warranty corrosion-free cabinet
- Smooth cleanable surfaces
- Low-noise appliance
- Low heat emission
- Modular interior equipment
- Simple USB data export
Technical specifications
Source: B Medical Systems
| . |
. |
| Gross volume |
297 L | 10.489 cu ft |
| Storage Capacity |
269 L | 9.5 cu ft |
| Set Temperature |
+5 °C |
| Alarm limits |
+3 °C | +7 °C |
| Climate class (ambient temperature range) |
+10 °C to +32 °C |
| Certifications |
cCSAus | EU MDR Class I | ISO 14644-1 | Class 4 | US FDA Class I |
| Cooling technology |
Forced air cooling system |
| External dimensions (H × W × D) |
1670 × 595 × 695 mm | 65.75 × 23.43 × 27.36 in |
| Internal dimensions (H × W × D) |
1470 × 475 × 470 mm | 57.87 × 18.70 × 18.50 in |
| Net weight |
97 kg | 213.85 lb |
| Frequency |
50-60 Hz |
| Supply voltage |
220-240 V |
| Energy consumption |
1.8 kWh/24 h |
| Noise level |
38 dB |
| Refrigerant Type |
Natural R600a |
| Heat emission |
64 Kcal/h |
| Materials |
Polypropylene/aluminum |
| Display |
Digital display |
| Remote monitoring |
Optional °B Connected software via data communication unit |
| Hold over time |
1.3 h (+5 °C to +10 °C) |
| Defrosting technique |
Natural |
| Access control |
Lock with two keys |
| Data export |
USB port |
| Product Type |
Laboratory Refrigerator |
Download the Brochure for More Information
Pharmacy Refrigerator P290
The Pharmacy Refrigerator P290 has a storage capacity of 269 liters | 9.5 cubic feet.
Image Credit: B Medical Systems
- External dimensions (H × W × D): 1670 × 595 × 695 mm | 65.75 × 23.43 × 27.36 in
- Refrigerant Type: Natural R600a
- Set Temperature: +5 °C
- Climate class (ambient temperature range): +10 °C to +32 °C
- Alarm limits: +3 °C | +7 °C
Image Credit: B Medical Systems
Reliability
Image Credit: B Medical Systems
- Audio-visual alarm system for remote alerts via SMS or email
- °B Connected universal software enables remote monitoring, reporting (compliant with FDA 21 CFR Part 11), and long-term archiving with a Data Communication Unit
- Forced air cooling system ensures consistent and even temperature distribution
- Rapid temperature recovery, even with frequent door openings
- Safety thermostat prevents temperatures from falling below freezing
- Extended autonomy during power outages
Efficiency
Image Credit: B Medical Systems
- Natural refrigerant with great cooling efficiency, compliant with US SNAP and EU F-Gas laws
- Polypropylene cabinets injected with polyurethane foam provide strong thermal insulation
- Four-layer glass windows and sealed gaskets reduce the loss of cold air
- LED interior lighting that operates automatically to save energy
- One-piece cabinet made using the special rotational molding process
Convenience
Image Credit: B Medical Systems
- Temperature-displaying electronics are readily available
- Reducing condensation using a gasket heater
- Lifetime warranty corrosion-free cabinet
- Smooth cleanable surfaces
- Low-noise appliance
- Low heat emission
- Modular interior equipment
- Improved visibility of the refrigerated content through an organic glass window
- Simple USB data export
Download the Brochure for More Information
Technical specifications
Source: B Medical Systems
| . |
. |
| Gross volume |
297 L | 10.489 cu ft |
| Storage Capacity |
269 L | 9.5 cu ft |
| Set Temperature |
+5 °C |
| Temperature range |
+4 °C to +15 °C |
| Alarm limits |
+3 °C | +7 °C |
| Climate class (ambient temperature range) |
+10 °C to +32 °C |
| Certifications |
cCSAus | EU MDR Class I | ISO 14644-1 | Class 4 | US FDA Class I |
| Cooling technology |
Forced air cooling system |
| External dimensions (H × W × D) |
1670 × 595 × 695 mm | 65.75 × 23.43 × 27.36 in |
| Internal dimensions (H × W × D) |
1470 × 475 × 470 mm | 57.87 × 18.70 × 18.50 in |
| Net weight |
95 kg | 209.44 lb |
| Frequency |
50-60 Hz |
| Supply voltage |
220-240 V |
| Energy consumption |
1.8 kWh/24 h |
| Noise level |
38 dB (50 Hz) | 40 dB (60 Hz) |
| Refrigerant Type |
Natural R600a |
| Heat emission |
64 Kcal/h |
| Materials |
Polypropylene/aluminum |
| Display |
Digital display |
| Remote monitoring |
Optional °B Connected software via data communication unit |
| Hold over time |
1.3 h (+5 °C to +10 °C) |
| Defrosting technique |
Natural |
| Access control |
Lock with two keys |
| Data export |
USB port |
| Product Type |
Pharmacy Refrigerator |
