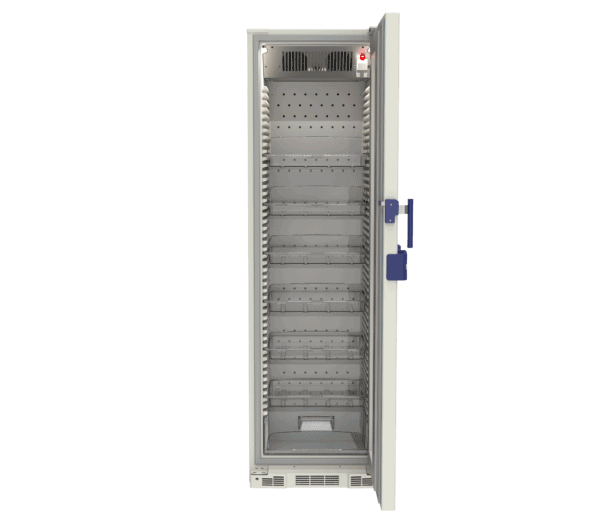

The B381 Blood Bank Refrigerator has a storage capacity of 329 L | 11.619 cu ft.
- External dimensions (H × W × D): 1980 × 595 × 695 mm | 77.95 × 23.43 × 27.36 inches
- Refrigerant Type: Natural R600a
- Set Temperature: +4 °C
- Climate class (ambient temperature range): +10 °C to +32 °C
- Alarm limits: +2 °C | +6 °C
Image Credit: B Medical Systems
Download the Brochure for More Information
Reliability
- °B Connected universal software for remote monitoring, reporting (in compliance with FDA 21 CFR Part 11), and long-term archiving in combination with a Data Communication Unit.
- Audio-visual alarm system with remote transmission via SMS or email.
- Forced air cooling system for uniform and stable temperature distribution.
- Fast temperature recovery even in the case of frequent door openings.
- Safety thermostat prevents the temperature from falling below freezing.
- Extended autonomy in case of power failure.
Image Credit: B Medical Systems
Efficiency
- Interior automatic LED lighting for lower energy consumption.
- Natural refrigerant of high cooling efficiency in conformity with US SNAP and EU F-Gas regulations.
- One-piece cabinet that is manufactured using rotational molding.
- Polypropylene cabinets are injected with polyurethane foam, providing strong thermal insulation.
- Sealed gaskets and a 4-layer glass window help minimize cold air loss.
Image Credit: B Medical Systems
Convenience
- Easy export of data via a USB.
- Electronics an with easily accessible temperature display.
- Gasket heater minimizes condensation.
- Lifetime warranty, corrosion-free cabinet.
- Low-noise appliance.
- Low heat emission.
- Modular interior equipment.
- Organic glass window for better visibility of the refrigerated content.
- Smooth cleanable surfaces.
Image Credit: B Medical Systems
Download the Brochure for More Information
Technical specifications
Source: B Medical Systems
| . |
. |
| Gross volume |
362 L | 12.784 cu ft |
| Storage Capacity |
329 L | 11.619 cu ft |
| Blood bag capacity (450 ml) |
213 |
| Blood bag capacity (350 ml) |
313 |
| Set Temperature |
+4 °C |
| Alarm limits |
+2 °C | +6 °C |
| Climate class (ambient temperature range) |
+10 °C to +32 °C |
| Certifications |
cCSAus | EU MDR Class IIa | ISO 14644-1 | Class 4 | SCoPE | US FDA Class II |
| Cooling technology |
Forced air cooling system |
| External dimensions (H × W × D) |
1980 × 595 × 695 mm | 77.95 × 23.43 × 27.36 in |
| Internal dimensions (H × W × D) |
1780 × 475 × 470 mm | 70.08 × 18.70 × 18.50 in |
| Net weight |
111 kg | 244.71 lb |
| Frequency |
50-60 Hz |
| Supply voltage |
220-240 V |
| Energy consumption |
2 kWh/24 h (50 Hz) | 2.1 kWh/24 h (60 Hz) |
| Noise level |
40 dB |
| Refrigerant Type |
Natural R600a |
| Heat emission |
72 Kcal/h |
| Materials |
Polypropylene/aluminum |
| Display |
Digital display |
| Remote monitoring |
Optional °B Connected software via data communication unit |
| Hold over time |
1.6 h (+4 °C to +10 °C) |
| Defrosting technique |
Natural |
| Access control |
Lock with 2 keys |
| Data export |
USB port |
| Product Type |
Blood Bank Refrigerator |
