B Medical Systems’ Blood Transport Boxes are medical-grade devices designed to safely transport blood and its components (such as blood cells, plasma, and platelets) in a secure, temperature-controlled environment.
Specifically engineered for blood banks and blood centers, the five models provide a diverse range of transport solutions with storage capacities ranging from 2.2 to 44 l. When used with the MT-ET range eutectics, a broader temperature range can be maintained (-32 °C, +4 °C, +22 °C, +37 °C).
All models comply with the highest safety standards for both end-users and patients, and are classified as Class IIa medical devices under the European Medical Device Regulation.
Download the Brochure for More Information
Explore the full product range
Blood Transport Box MT2
Blood Transport Box MT4
Blood Transport Box MT8
Blood Transport Box MT12
Blood Transport Box MT25
Blood Transport Box MT100
GT Mini – temperature monitoring system – data logger

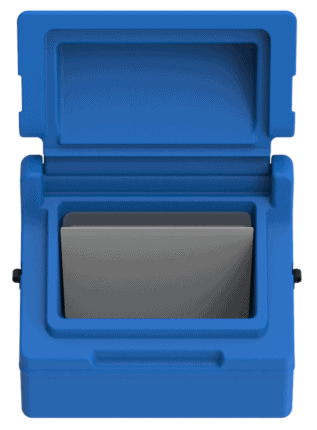

Blood Transport Box MT2
Image Credit: B Medical Systems
Blood Transport Box with 2.2 L | 0.08 cu ft gross volume.
- External dimensions (H × W × D): 210 × 250 × 150 mm | 8.27 × 9.84 × 5.91 in
- Blood bag capacity (450 ml): 1
- Cold life at +32 °C: up to 13.5 h
Image Credit: B Medical Systems

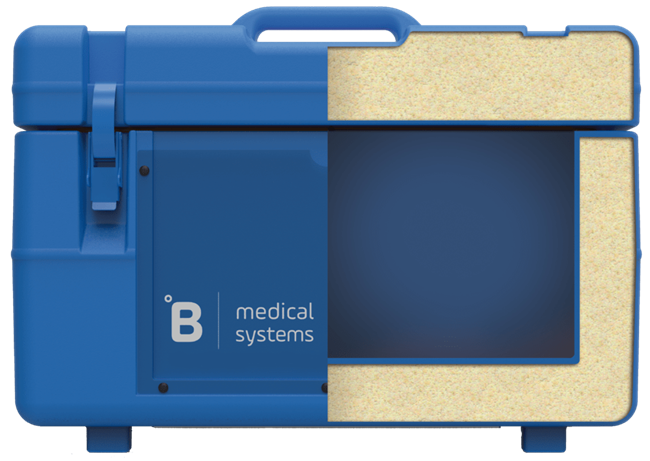

Reliable protection
Image Credit: B Medical Systems
- High shock resistance
- Extended cold life, ensuring temperature control during long transports
- Environmentally friendly insulation for optimal protection against temperature fluctuations
- An optional temperature data logger for complete traceability
User-friendly design
Image Credit: B Medical Systems
- An adjustable strap for convenient carrying
- Certifications for use across all transportation methods (road, rail, sea, air)
- Easy cleaning with standard disinfectants
- Stackable design
Long-term durability
Image Credit: B Medical Systems
- Proven robustness through rigorous drop and stacking tests
- A lifetime warranty against corrosion
- Construction using high-quality, virtually indestructible polyethylene
Technical specifications
Source: B Medical Systems
| . |
. |
| Gross volume |
2.2 L | 0.08 cu ft |
| Blood bag capacity (450 ml) |
1 |
| Blood bag capacity (270 ml) |
2 |
| Certifications |
EU MDR Class IIa |
| Cooling technology |
Passive |
| External dimensions (H × W × D) |
210 × 250 × 150 mm | 8.27 × 9.84 × 5.91 in |
| Internal dimensions (H × W × D) |
130 × 190 × 90 mm | 5.12 × 7.48 × 3.54 in |
| Net weight |
1.3 kg | 2.87 lb |
| Materials |
Polyethylene |
| Remote monitoring |
Not remote | via Data logger |
| Cold life at +32 °C |
up to 13.5 h |
| Product Type |
Blood Transport Box |
Blood Transport Box MT4
Image Credit: B Medical Systems
Blood Transport Box with 8 L | 0.28 cu ft gross volume.
- External dimensions (H × W × D): 299 × 362 × 283 mm | 11.77 × 14.25 × 11.14 in
- Blood bag capacity (450 ml): 4
- Cold life at +32 °C: up to 46 hours
Image Credit: B Medical Systems
Reliable protection
Image Credit: B Medical Systems
- Excellent resistance to shock
- Extended cold retention for prolonged temperature-controlled transport
- Environmentally responsible insulation provides superior protection against temperature fluctuations
- Availability of an optional temperature data logger for complete tracking
User-friendly design
Image Credit: B Medical Systems
- A user-friendly adjustable strap for effortless carrying
- Certifications ensure compliance for all transport modes, including road, rail, sea, and air
- Simple cleaning using standard disinfectants
- Stackable design
Long-term durability
Image Credit: B Medical Systems
- Proven durability through successful completion of drop and stacking tests
- A lifetime warranty against corrosion
- Construction from high-quality, indestructible polyethylene material
Technical specifications
Source: B Medical Systems
| . |
. |
| Gross volume |
8 L | 0.28 cu ft |
| Blood bag capacity (450 ml) |
4 |
| Blood bag capacity (270 ml) |
6 |
| Certifications |
EU MDR Class IIa |
| Cooling technology |
Passive |
| External dimensions (H × W × D) |
299 × 362 × 283 mm | 11.77 × 14.25 × 11.14 in |
| Internal dimensions (H × W × D) |
186 × 260 × 156 mm | 7.32 × 10.24 × 6.14 in |
| Net weight |
3.1 kg | 6.83 lb |
| Materials |
Polyethylene |
| Remote monitoring |
Not remote | via Data logger |
| Cold life at +32 °C |
up to 46 h |
| Cold life at +43 °C |
up to 32.5 h |
| Product Type |
Blood Transport Box |
Blood Transport Box MT8
Image Credit: B Medical Systems
Blood Transport Box with 20 L | 0.71 cu ft gross volume.
- External dimensions (H × W × D): 437 × 588 × 288 mm | 17.20 × 23.15 × 11.34 inch
- Blood bag capacity (450 ml): 8
- Cold life at +32 °C: up to 57 hours
Image Credit: B Medical Systems
Reliable protection
Image Credit: B Medical Systems
- High shock resistance
- Extended cold life, ensuring consistent temperature control during long-duration transport
- Environmentally friendly insulation provides optimal protection against temperature fluctuations
- Availability of an optional temperature data logger for comprehensive tracking
User-friendly design
Image Credit: B Medical Systems
- A convenient, adjustable strap for easy portability
- Certifications ensuring suitability for all modes of transportation (road, rail, sea, and air)
- Simple cleaning using standard disinfectants
- Stackable design
Long-term durability
Image Credit: B Medical Systems
- Durability confirmed through successful drop and stacking tests
- Lfetime guarantee against corrosion
- Constructed from high-quality, indestructible polyethylene
Technical specifications
Source: B Medical Systems
| . |
. |
| Gross volume |
20 L | 0.71 cu ft |
| Blood bag capacity (450 ml) |
8 |
| Blood bag capacity (270 ml) |
14 |
| Certifications |
EU MDR Class IIa |
| Cooling technology |
Passive |
| External dimensions (H × W × D) |
437 × 588 × 288 mm | 17.20 × 23.15 × 11.34 in |
| Internal dimensions (H × W × D) |
245 × 460 × 180 mm | 5.71 × 18.11 × 7.09 in |
| Net weight |
7 kg | 15.43 lb |
| Materials |
Polyethylene |
| Remote monitoring |
Not remote | via Data logger |
| Cold life at +32 °C |
up to 57 h |
| Cold life at +43 °C |
up to 16.39 h |
| Product Type |
Blood Transport Box |
Download the Brochure for More Information
Blood Transport Box MT12
Image Credit: B Medical Systems
Blood Transport Box with 24 L | 0.85 cu ft gross volume.
- External dimensions (H x W x D): 499 x 550 x 475 mm | 19.65 x 21.65 x 18.70 in
- Blood bag capacity (450 ml): 15
- Cold life at +32 °C: up to 96.14 hours
Image Credit: B Medical Systems
Reliable protection
Image Credit: B Medical Systems
- Shock resistance
- Extended cold life, ensuring consistent temperature control during long-distance transport
- Environmentally friendly insulation offers optimal protection against temperature fluctuations
- An optional temperature data logger is available for complete tracking of temperature conditions
User-friendly design
Image Credit: B Medical Systems
- A user-friendly adjustable strap for convenient carrying
- Certifications ensuring compliance for all transportation methods (road, rail, sea, and air)
- Stackable design
- Simple cleaning using standard disinfectants
Long-term durability
Image Credit: B Medical Systems
- Durability confirmed through successful drop and stacking tests.
- A lifetime guarantee against corrosion.
- Constructed from high-quality, indestructible polyethylene material.
Technical specifications
Source: B Medical Systems
| . |
. |
| Gross volume |
24 L | 0.85 cu ft |
| Blood bag capacity (450 ml) |
15 |
| Blood bag capacity (270 ml) |
25 |
| Certifications |
EU MDR Class IIa |
| Cooling technology |
Passive |
| External dimensions (H × W × D) |
499 × 550 × 475 mm | 19.65 × 21.65 × 18.70 in |
| Internal dimensions (H × W × D) |
270 × 340 × 260 mm | 10.63 × 13.39 × 10.24 in |
| Net weight |
11.7 kg | 25.79 lb |
| Materials |
Polyethylene |
| Remote monitoring |
Not remote | via Data logger |
| Cold life at +32 °C |
up to 96.14 h |
| Cold life at +43 °C |
up to 56.6 h |
| Product Type |
Blood Transport Box |
Blood Transport Box MT25
Image Credit: B Medical Systems
Blood Transport Box with 44 L | 1.55 cu ft gross volume.
- External dimensions (H x W x D): 499 x 710 x 550 mm | 19.65 x 27.95 x 21.65 in
- Blood bag capacity (450 ml): 26
- Cold life at +32 °C: up to 109 hours
Image Credit: B Medical Systems
Reliable protection
Image Credit: B Medical Systems
- Excellent resistance to shocks and impacts.
- Extended cold life, ensuring consistent temperature control during long-duration transport.
- Environmentally friendly insulation provides optimal protection against temperature fluctuations.
- Availability of an optional temperature data logger for complete tracking.
User-friendly design
Image Credit: B Medical Systems
- A convenient adjustable strap for easy portability.
- Certifications ensuring compliance for all modes of transportation (road, rail, sea, and air).
- Simple cleaning using standard disinfectants.
- A space-saving stackable design.
Long-term durability
Image Credit: B Medical Systems
- Durability confirmed through successful drop and stacking tests
- A lifetime guarantee against corrosion
- Constructed from high-quality, indestructible polyethylene material
Technical specifications
Source: B Medical Systems
| . |
. |
| Gross volume |
44 L | 1.55 cu ft |
| Blood bag capacity (450 ml) |
26 |
| Blood bag capacity (270 ml) |
40 |
| Certifications |
EU MDR Class IIa |
| Cooling technology |
Passive |
| External dimensions (H × W × D) |
499 × 710 × 550 mm | 19.65 × 27.95 × 21.65 in |
| Internal dimensions (H × W × D) |
264 × 496 × 334 mm | 10.39 × 19.53 × 13.15 in |
| Net weight |
17 kg | 37.48 lb |
| Materials |
Polyethylene |
| Remote monitoring |
Not remote | via Data logger |
| Cold life at +32 °C |
up to 109 h |
| Cold life at +43 °C |
up to 74 h |
| Product Type |
Blood Transport Box |
Blood Transport Box MT100
Image Credit: B Medical Systems
Blood Transport Box with 90 L gross volume.
- External dimensions (H x W x D): 1000 x 520 x 800 mm
- Blood bag capacity (450 ml): 48
Image Credit: B Medical Systems
Reliable protection
Image Credit: B Medical Systems
- High resistance to shocks and impacts
- Availability of an optional temperature data logger for comprehensive tracking
- Environmentally friendly insulation offers optimal protection against temperature fluctuations
- Secure access control with sealed clasps and locks
- Real-time monitoring via a digital temperature display and remote alarm system
User-friendly design
Image Credit: B Medical Systems
- Wheels and handles for convenient transport
- A car fixation kit for secure transportation in vehicles
- Easy cleaning with standard disinfectants
Long-term durability
Image Credit: B Medical Systems
- Durability confirmed through successful drop and stacking tests
- A lifetime guarantee against corrosion
- Constructed from high-quality, indestructible polyethylene
- Equipped with durable stainless steel baskets
Technical specifications
Source: B Medical Systems
| . |
. |
| Gross volume |
90 L |
| Blood bag capacity (450 ml) |
48 |
| Set Temperature |
+4 °C | +22 °C |
| Certifications |
EU MDR Class IIa |
| Cooling technology |
Active |
| External dimensions (H × W × D) |
1000 × 520 × 800 mm |
| Internal dimensions (H × W × D) |
450 × 306 × 545 mm |
| Net weight |
52 kg |
| Frequency |
50-60 Hz |
| Supply voltage |
100-130 V AC | 220-240 V AC | 13.7 V DC | 27.4 V DC |
| Materials |
Polyethylene |
| Remote monitoring |
Not remote | via Data logger |
| Product Type |
Blood Transport Box |
Download the Brochure for More Information
GT Mini – temperature monitoring system – data logger
Image Credit: B Medical Systems
GT Mini is a dependable temperature monitoring system and data logger designed for the medical cold chain. It ensures the safety and effectiveness of temperature-sensitive medical specimens during transport and storage by providing precise monitoring and exportable temperature reports. This allows the user to track their valuable medical cargo throughout its entire journey.
Image Credit: B Medical Systems
Key features
- High-precision temperature monitoring across a wide temperature range
- Convenient data access via mobile and web portal
- Customizable settings for temperature thresholds, data logging intervals, and more to suit one’s specific needs
- Exportable temperature reports available in XLS and PDF formats
GT Mini. Installed on the medical device. Image Credit: B Medical Systems
Operating temperature range: -10 °C to +60 °C
TempSense 810. Placed inside the medical device. Image Credit: B Medical Systems
Operating temperature range: -20 °C to +65 °C
Access the last 50 records directly through the mobile app.
View complete data history via the web portal.
Data is stored on the GT Mini device for up to 30 days.
GT Mini mobile app and web portal
Image Credit: B Medical Systems
Access and manage all data collected from the GT Mini and TempSense 810 through an intuitive web-based dashboard and a convenient mobile application.
Temperature Data Access: Instantly view temperature data and reports by simply scanning the QR code on the GT Mini.
Customizable Settings: Tailor temperature thresholds, data collection frequency, and buzzer repeat intervals to the precise needs.
Export Report: Export temperature reports in both XLS and PDF formats for detailed analysis and regulatory compliance.
Three configuration modes via mobile app
30-day mode
This system is well-suited for both fixed-location monitoring and long-distance deliveries, collecting data at longer intervals with data accessibility for up to 30 days.
Trip mode
This mode is ideal for rapid transport or the transfer of small samples between specific locations.
Warehouse mode
A battery saver mode is included to extend the device's battery life when it is not actively being used.
Two types of user access on web portal
Admin
Manage the units and viewers.
Viewer
Access or export information.
Technical specifications
Source: B Medical Systems
| . |
. |
| GT Mini - Operating temperature |
-10 °C to +60 °C |
| GT Mini - Temperature sensor type |
Digital |
| GT Mini - Temperature sensor accuracy |
±0.1 °C (maximum) from -20 °C to +50 °C | ±0.15 °C (maximum) from -40 °C to +70 °C |
| GT Mini - Screen type |
E-ink display |
| GT Mini - Buzzer volume |
75 dB |
| GT Mini - Connectivity technology |
Bluetooth Low Energy (BLE) |
| GT Mini - Battery pack capacity |
4000 mAh |
| GT Mini - Waterproofing protection |
IP65 |
| TempSense 810 - Operating temperature |
-20 °C to +65 °C |
| TempSense 810 - Temperature sensor type |
Digital |
| TempSense 810 - Temperature sensor accuracy |
±0.1 °C (maximum) from -20 °C to +50 °C | ±0.15 °C (maximum) from -40 °C to +70 °C |
| TempSense 810 - Battery cells |
2 |
| TempSense 810 - Battery capacity per cell |
345 mAh |
| TempSense 810 - Waterproofing protection |
IP67 |
| Product Type |
Monitoring System |
